51 13 301 Removing and installing/replacing left or right roof trim strip

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL:

Release door seal in area of roof trim strip.

Detach trim strip (1) from clips (2) from the rear towards the front in direction of arrow.

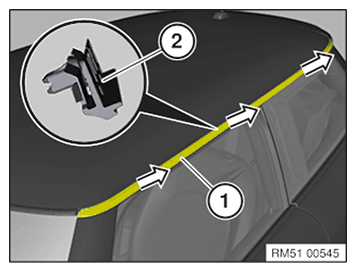

Fig 1: Detaching Trim Strip From Clips
G11649061Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Clip in trim strip (1).

Secure door seal (2).

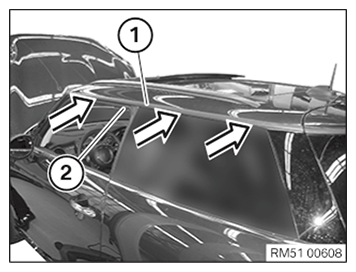

Fig 2: Securing Door Seal
G11649062Courtesy of BMW OF NORTH AMERICA, INC.
