51 11 156 Removing and installing front bumper panel: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

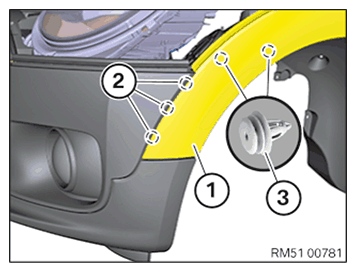

Release trim (1) from latch mechanisms (2) and clips (3).

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Fig 1: Trim, Latch Mechanisms And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

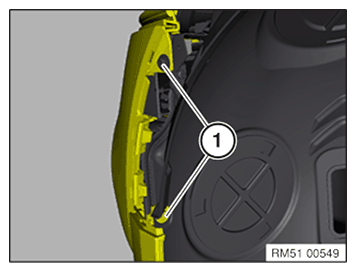

Release screws (1).

Fig 2: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

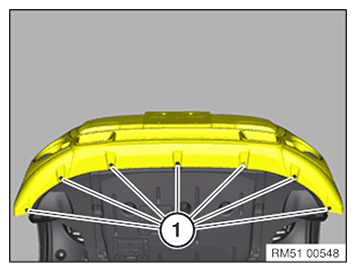

Release screws (1).

Fig 3: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

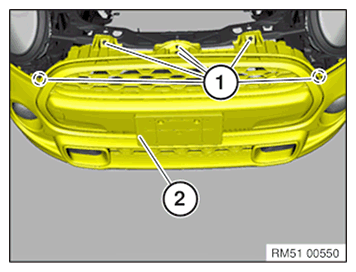

Release screws (1).

Pull bumper panel (2) slightly towards the front with aid of a second person.

Unlock and disconnect all plug connections depending on equipment specification.

Remove bumper panel (2) towards the front with the aid of an auxiliary person.

Fig 4: Bumper Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position bumper panel (2) with the aid of a second person.

Connect all plug connections.

Tighten down screws (1).

Fig 5: Bumper Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 51 11 1AZ .

Tighten down screws (1).

Fig 6: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Fig 7: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten trim (1) on latch mechanisms (2) and clips (3).

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Fig 8: Trim, Latch Mechanisms And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Adjust bumper to specified GAP DIMENSIONS .

Only for Cooper JCW:

Swap over the following parts according to version:
