Replacing rear silencer (B36, B38) (Cooper)

Injury hazard!

Call on the assistance of a second technician to remove the rear silencer

Preliminary work needed:

• Remove both rear TENSION STRUTS .
• Support rear silencer with a suitable jack and secure against falling down.

Removal:

Loosen screws (1).

Remove cross strut (2) on rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

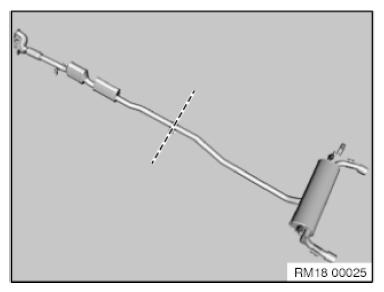

Carry over separation point to faulty rear silencer and mark.

Secure rear silencer against falling off.

Cut through exhaust pipes at marked point with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Spray rubber mount (1) with lubricant and detach from exhaust system.

Replaced damaged rubber mounts.

Parts:  rubber mount

Courtesy of BMW OF NORTH AMERICA, INC.

Spray rubber mount (1) with lubricant and detach from rear silencer.

Replaced damaged rubber mounts.

Parts:  rubber mount

Lower and remove rear silencer with assistance of a second technician.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install new rear silencer and connect rubber mount (1) to rear silencer.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect rubber mount (1) to rear silencer.

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new rear silencer and connect by clamp to center silencer.

Center clamp and tighten down.

Tightening torque 18 20 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install cross strut (2) on rear axle support.

Tighten down screws (1).

Tightening torque 33 31 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install both rear TENSION STRUTS .
• Check exhaust system for leak tightness.
