REP-TAT-P-6121-01 Remove battery
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Remove INTAKE PORT
- Remove INTAKE SILENCER HOUSING
- Remove rear HOOD SEAL
- Remove left WINDSHIELD PANEL COVER
- Remove BATTERY COVER
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger d connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
TECHNICAL INFORMATION
NOTES for disconnecting and connecting the vehicle battery and
INSTRUCTIONS on intelligent battery sensor (IBS).
Observe SAFETY INSTRUCTIONS for handling vehicle battery,
NOTES for disconnecting and connecting the vehicle battery and
INSTRUCTIONS on intelligent battery sensor (IBS).
- Loosen nut (1).
- Disconnect the negative battery cable from the battery.
- Unlock plug connection (3) and disconnect.
- Feed out battery ground cable (2) and set it aside.
- Loosen expanding rivet (arrow).
- Remove the mount (1) for the seal.
- Release screws (arrows) and remove tension strut (1).

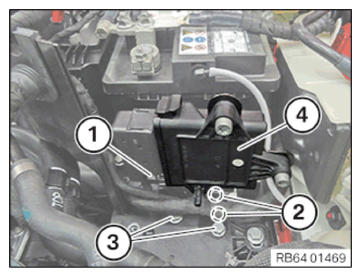

- F56 Battery Electric Vehicle:
Unlock plug connection (1) and disconnect.
Unclip the cable clip (2).
Loosen screws (3).
Feed out and remove the heat pump controller (4).
- Detach nut from positive battery cable (1).
- Disconnect positive battery cable (1) and set it aside.
WARNING:
Unprotected battery terminals.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Cover the vehicle battery.
- Disconnect the air bleeder hose (arrow) from the battery (2).
- Unscrew the screw (3) and guide it out with the holder and remove.
- Feed out and remove the battery (4).
