Removing and installing/replacing support for left or right outer door handle with lock cylinder (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove OUTER HANDLE .
Remove front SOUND INSULATION .

Removal:

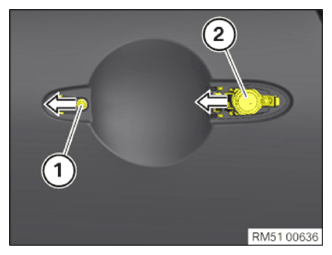

Remove screw (1).

Slide support (2) forwards and feed out inwards.

G13797415

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If a cover is installed on the support (1), it does not have to be disassembled.

Shift support (1) forwards and detach operating rod (2) from door lock (3).

Feed out support (1) from door.

G13797416

Courtesy of BMW OF NORTH AMERICA, INC.

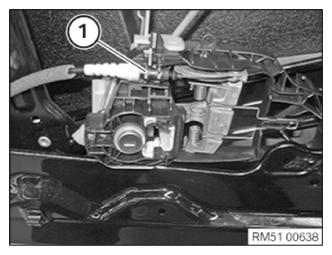

Detach cable (1) and remove support.

G13797417

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount LOCK CYLINDER .

Installation:

Attach cable (1).

G13797418

Courtesy of BMW OF NORTH AMERICA, INC.

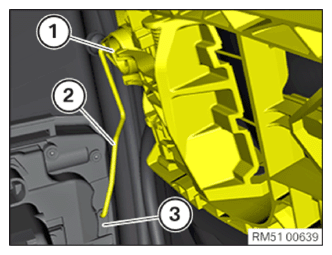

NOTE: If a cover is installed on the support (1), it does not have to be disassembled.

Feed in support (1) into door.

Attach operating rod (2) in door lock (3).

G13797419

Courtesy of BMW OF NORTH AMERICA, INC.

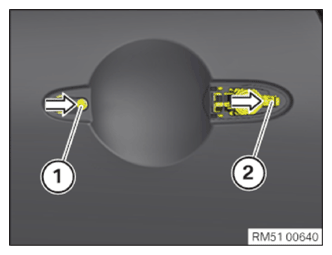

Feed in support (2) into mounting towards the rear.

Tighten screw (1).

Tightening torque 51 21 6AZ .

G13797420

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install OUTER DOOR HANDLE .
Install SOUND INSULATION .
