Removing and installing/replacing the outside door handle on the left or right front door (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

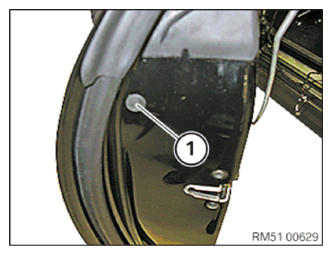

Lever out cover (1) and release screw underneath.

NOTE: Undo the screw only until the outer door handle is detached.

G13797429

Courtesy of BMW OF NORTH AMERICA, INC.

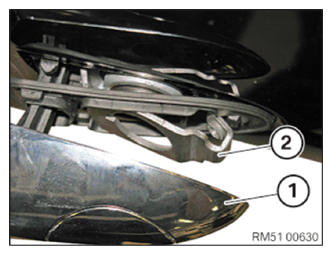

Pull out outer door handle (1) and feed out retaining plate (2).

G13797430

Courtesy of BMW OF NORTH AMERICA, INC.

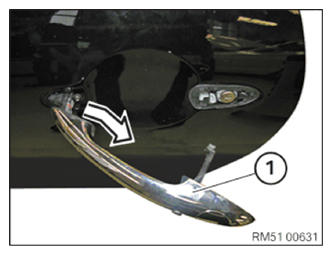

Pull outer door handle (1) towards the rear and feed out.

If necessary, unlock associated plug connections and disconnect.

Remove outer door handle.

G13797431

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect plug connections.

Feed in outer door handle into front opening.

G13797432

Courtesy of BMW OF NORTH AMERICA, INC.

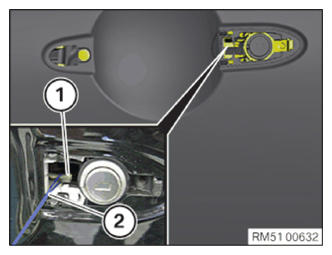

Use string (2) to pull lock actuation (1) outwards and hold in position.

Install outer door handle and insert correctly into lock actuator (1).

Pull out string (2).

G13797433

Courtesy of BMW OF NORTH AMERICA, INC.

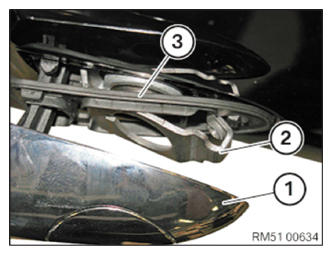

Pull out outer door handle (1) slightly and feed in retaining plate (2).

Ensure gasket (3) is seated correctly.

G13797434

Courtesy of BMW OF NORTH AMERICA, INC.

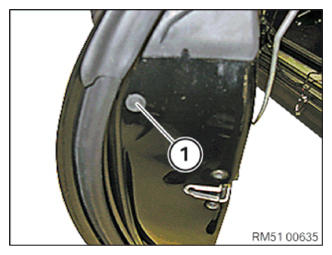

Tighten bolt and mount cover (1).

Tightening torque 51 21 5AZ .

G13797435

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out functional check with door open!
