Removing and installing/replacing door lock in left or right front door (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove/replace support for left or right OUTER DOOR HANDLE with lock and remove/replace support for left or right OUTER DOOR HANDLE without lock cylinder.
Removal:
IMPORTANT:
Do not damage the door lock gasket during removal.

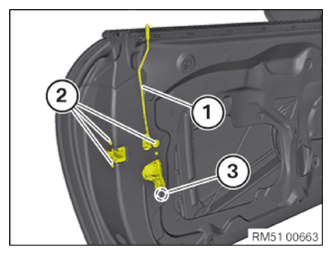

Unclip locking rod (1).
Unfasten plug connection (3) and disconnect.
Unscrew the screws (2).
Replacement:

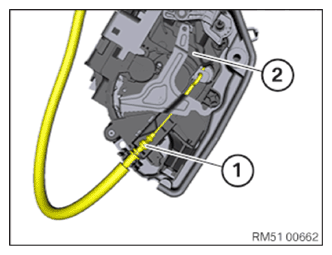

Remount Bowden cable (1).
Installation:

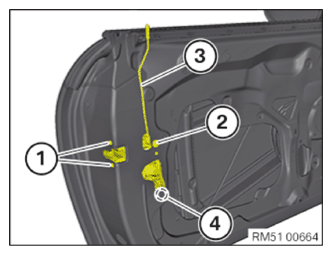

Tighten screws (1) first. Then tighten screw (2) of door lock.
Tightening torque 51 21 1AZ .
Clip in locking rod (3).
Connect plug connection (4).
Required reworking:
- Install support for left or right OUTER DOOR HANDLE with lock cylinder and install support for left or right OUTER DOOR HANDLE without lock cylinder.
