Removing and installing/replacing support for left or right outer door handle without lock cylinder (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove OUTER HANDLE .
- Remove front SOUND INSULATION .
Removal:

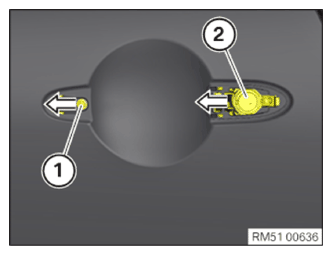

Remove screw (1).
Slide support (2) forwards and feed out inwards.
Feed out support (1) from door.

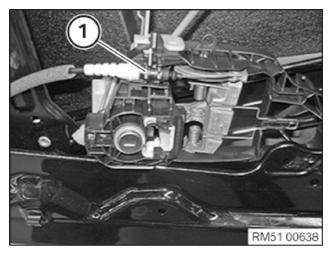

Detach cable (1) and remove support.
Installation:
Attach cable (1).
Feed in support (1) into door.

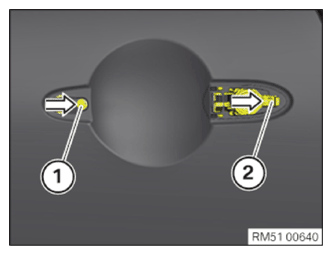

Feed in support (2) into mounting towards the rear.
Tighten screw (1).
Tightening torque 51 21 6AZ .
Required follow-up work:
- Install OUTER DOOR HANDLE .
- Install SOUND INSULATION .
