Replacing the front deformation element on the bottom right (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove front bottom support for BUMPER COVER .
- Release FLUID FUEL TANK for washer system.
Removal:
Only MINI Coopers:

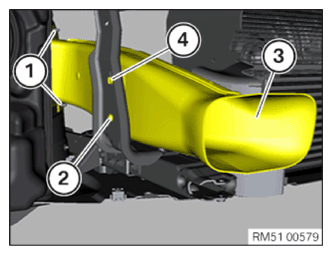

Release expanding rivet (1).
Remove screw (2).
Feed out air duct (3) from guide (4) and remove.

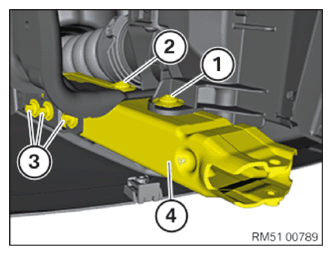

Release screws (1 to 3).
Remove deformation element (4).
Installation:
Insert deformation element (4).
Tighten screws (1 to 3).
| Screw | Tightening torque |
|---|---|
| (1) | 51 11 9AZ . |
| (2) | 51 11 4AZ . |
| (3) | 51 11 5AZ . |
Only MINI Coopers:
Feed in air duct (3) with guide (4) into holder.
Secure air duct (3) with screw (2) and expanding rivet (1).
Required follow-up work:
- Install front bottom support for BUMPER COVER .
- Secure WASHER FLUID RESERVOIR for washer system.
