Removing and installing/replacing DSC control unit (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic discharge (ESD protection)!
Preliminary work needed:
- Remove HYDRAULIC UNIT .
Removal:

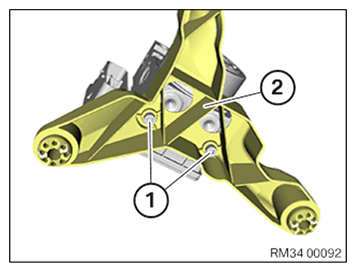

Release screws (1) and remove holder (2).
IMPORTANT:
Risk of damage to the contacts when removing and installing the hydraulic control unit.

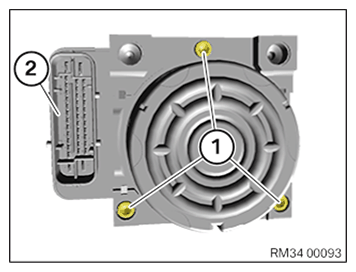

Release screws (1) and carefully detach control unit (2) towards front.
Preparation for installation:
IMPORTANT:
Cleaning with compressed air, chemical solvents and sharp-edged objects is not permitted.

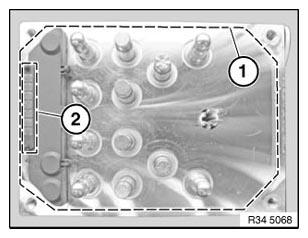

Do not touch pressure sensor contacts (2) with your fingers or clean the contacts.
Do not touch pressure sensor contacts (2) with your fingers or clean the contacts.
If necessary, clean sealing surface (1) with a plastic scraper or a fluff-free cloth.
IMPORTANT:

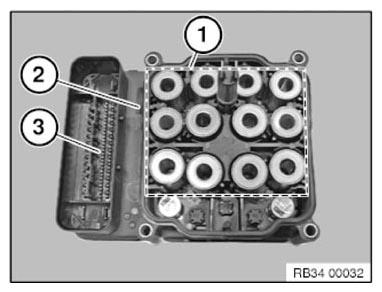

Do not touch, clean or readjust valve coils (1) and pressure sensor contact springs with your fingers.
Check gasket (2) for damage. If damaged, replace DSC control unit (3).
Installation:
Installation note:
Make sure screws are inserted evenly and DSC control unit rests on hydraulic unit.
Replace screws.
Observe tightening sequence (1-3).
Tightening torque 34 51 1AZ .
Attach holder (2).
Insert screws (1) and tighten.
Tightening torque 34 51 2AZ .
Required reworking:
- Install the HYDRAULIC UNIT .
Replacement:
Carry out PROGRAMMING/CODING .
