Removing and installing/replacing DSC hydraulic unit (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Read and comply with GENERAL NOTES .
Remove the right windshield PANEL COVER .

Removal:

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Courtesy of BMW OF NORTH AMERICA, INC.

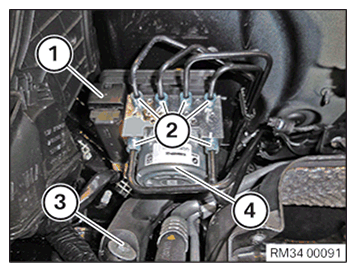

Disconnect plug connection (1).

IMPORTANT: Do not mix up brake lines and if necessary mark prior to removal.
Close off connecting bores with seal plugs.
Brake lines must not be bent.

Unfasten brake lines (2).

Release screw (3) and remove hydraulic unit (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install hydraulic unit (4).

Fit bolt (3) and tighten.

Tightening torque 34 51 2AZ .

Fit brake lines (2) and tighten.

Tightening torque 34 32 1AZ .

Connect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove pedal support.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the right WINDSHIELD PANEL COVER .
Vent the DSC BRAKE SYSTEM .
Adjustment of STEERING ANGLE SENSOR .
Functional Check HYDRAULIC UNIT .

Replacement:

Carry out PROGRAMMING/CODING .
