Removing and installing cylinder head (B38 engine) (Cooper Clubman base)

Special tools required:

Attention!

When replacing the cylinder head:

In all vehicles, the Digital Motor Electronics (DME) must possibly be reprogrammed/recoded after the replacement  of the cylinder head.

Attention!

When replacing the cylinder head, there may be damage to the valve train due to a lack of motor oil.

It is imperative that you observe the REPAIR NOTES FOR REPLACING THE ENGINE .

Attention!

Make sure there is no coolant, water or motor oil in the threaded holes in the engine block.

Fit new cylinder head bolts.

Do not wash off screw coating.

Joining torque and angle of rotation must be observed without fail (risk of damage!)  .

NOTE: When replacing cylinder head:

The complete valve timing and the Valvetronic servomotor are already pre-assembled.

Preliminary work needed:

Removal:

Unlock coolant line (1) and detach.

G11671207Courtesy of BMW OF NORTH AMERICA, INC.
G11671208Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 2 414 691 together with the special tool 2 357 071.

Attach special tool 2 414 691 on the front axle mount and correctly align the special tool 2 357 071 below the oil sump and tighten.

Uniformly rotate special tool 2 414 691 on the adjustment screws until the special tool 2 357 071 lies on the oil pan.

Tighten all adjustment screws of special tools 2 414 691 and 2 357 071.

Release screw connection (1) of right engine mount.

G11671163Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1). Remove holder from cylinder head.

NOTE: Shown with engine mount removed for purposes of clarity.
G11671210Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Remove guide rail (2).

G11671211Courtesy of BMW OF NORTH AMERICA, INC.

Fix intake camshaft with an open-end wrench (1).

Release screw (2).

Remove the camshaft sensor wheel (3).

G11671212Courtesy of BMW OF NORTH AMERICA, INC.

Disassemble the roller tappet (1) from the high pressure pump bracket (3).

G11671213Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

G11671214Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 11 8 580 to slacken the cylinder head bolts.

G11671215Courtesy of BMW OF NORTH AMERICA, INC.

Slacken cylinder head bolts in sequence 8 to 1.

Remove cylinder head.

Fig 1: Slacken Cylinder Head Bolts Loosening Sequence
G11671216Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The oil ducts must be sealed before cleaning the sealing surfaces using special tools 11 4 471 and 11 4 472.

Attention!

Do not use any metal-cutting tools (e.g. emery cloth).

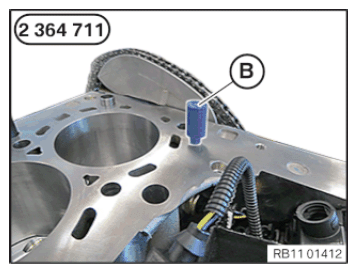

Seal front oil duct with special tool (B)  from tool set 2 364 711.

G11671217Courtesy of BMW OF NORTH AMERICA, INC.

Remove coarse residues on sealing surfaces with special tool 11 4 471 from cylinder head and crankcase.

Attention!

Do not use any metal-cutting tools.

G09873477Courtesy of BMW OF NORTH AMERICA, INC.

Remove fine residues on sealing surfaces with special tool 11 4 472 from cylinder head and crankcase.

Attention!

Do not use any metal-cutting tools.

There must be no coolant, water or motor oil in the pocket holes.

Risk of cracking and corrosion!

G09873478Courtesy of BMW OF NORTH AMERICA, INC.

Clean all blind holes.

Replace CYLINDER HEAD GASKET .

Check lining sleeves (1) for damage and correct installation position.

Clean sealing surfaces on the cylinder head and crankcase using special tool 11 4 470.

G11671220Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

There must be no coolant, water and motor oil in any of the threaded holes in the engine block.

Fit new cylinder head bolts.

Do not wash off screw coating.

Lightly oil screw head support.

Joining torque and angle of rotation must be observed without fail (risk of damage!)  .

Fit cylinder head and secure with new bolts, tightening in the sequence 1 to 8.

Tightening torque: 11 12 1AZ .

Fig 2: Cylinder Head Bolts Tightening Sequence
G11671216Courtesy of BMW OF NORTH AMERICA, INC.

Secure cylinder head bolts (1) with special tool 00 9 120 and 11 8 580.

G11671215Courtesy of BMW OF NORTH AMERICA, INC.

Install and tighten down screws (1).

Tightening torque: 11 12 2AZ .

G11671214Courtesy of BMW OF NORTH AMERICA, INC.

Mount the roller tappet (1) on the high pressure pump bracket (3).

G11671213Courtesy of BMW OF NORTH AMERICA, INC.

Fix intake camshaft with an open-end wrench (1).

Position the camshaft sensor wheel (3).

Tighten down screw (2).

Tightening torque 11 31 2AZ .

G11671212Courtesy of BMW OF NORTH AMERICA, INC.

Install guide rail (2).

Tighten the screws.

G11671211Courtesy of BMW OF NORTH AMERICA, INC.

Fit holder to cylinder head. Tighten down screws (1).

Tightening torque 22 11 3AZ .

NOTE: Shown with engine mount removed for purposes of clarity.
G11671210Courtesy of BMW OF NORTH AMERICA, INC.

Secure engine mounting bracket to engine mount with screws (1).

Tightening torque 22 11 1AZ .

G11671163Courtesy of BMW OF NORTH AMERICA, INC.

Remove the special tool 2 414 691.

G11671208Courtesy of BMW OF NORTH AMERICA, INC.

Connect coolant line (1) and clip in.

G11671207Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

When replacing the cylinder head, the I level must possibly be coded and programmed  .
