Release the cooling module if there is vibration at the steering wheel or seat rail (Cooper)

NOTE: A deformed cooling module could be the cause for vibrations and interference noises in the car when the engine is idling or during slow driving (up to 2 km/h).
An incorrectly installed cooling module could also be cause for vibrations and interference noises. This means the cooling module lies on the neighboring components.
Ensure that the individual components of the cooling module are installed correctly and ensure sufficient distance between the cooling module and the other components.

Courtesy of BMW OF NORTH AMERICA, INC.

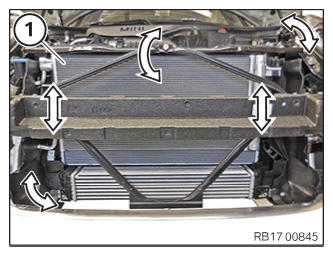

If the cooling module (1) is deformed:

the installation position of the cooling module may be too high or low
the installation position of the cooling module may be bent
the cooling module may be tilted backward or forward

If the cooling module is incorrectly installed, the cooling module may lie on other components and generate vibrations or interference noises.

If the cooling module is correctly installed, the centering pin (1) juts out on the left and right by around 2 mm (2) from the rubber mount.

Courtesy of BMW OF NORTH AMERICA, INC.

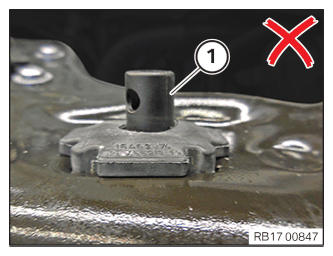

If the centering pin (1) juts out too far from the rubber mount, the cooling module is installed too high or aslant.

Courtesy of BMW OF NORTH AMERICA, INC.

If the centering pin (1) fits too deep into the rubber mount, the cooling module is installed too low or aslant.

Courtesy of BMW OF NORTH AMERICA, INC.

If the centering pin (1) fits aslant in the rubber mount, the cooling module is installed tilted backward.

Courtesy of BMW OF NORTH AMERICA, INC.

Required preliminary work to release the cooling module:

Remove INTAKE SILENCER HOUSING .
Remove INTAKE MANIFOLD .
Remove front UNDERBODY PROTECTION .
Remove front BUMPER COVER

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted:

Unscrew the screws (1).

Remove strut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1), right on the bottom cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1), left on the bottom cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from front axle support and adapter deformation element, right.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from front axle support and adapter deformation element, left.

Courtesy of BMW OF NORTH AMERICA, INC.

Align cooling module with a second person and release.

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that the gasket (1) between the cooling module and bridge is not crushed.

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that the holder for the cooling module does not lie on the deformation element.

Courtesy of BMW OF NORTH AMERICA, INC.

Align cooling module with a second person in such a way that the centering pin (1) juts out on the left and right of the center by about 2 mm from the rubber mount. The cooling module must be held tight by the second person in the aligned position till all screws are tightened.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace right screws (1) on the cross connection and tighten.

Tightening torque 17 10 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Replace left screws (1) on the cross connection and tighten.

Tightening torque 17 10 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on front axle support and adapter deformation element.

Tightening torque 31 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on front axle support and adapter deformation element.

Tightening torque 31 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

If the cooling module is still not in the correct installation position, slacken the bridge.

Remove rubber mount (1) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1) and pull coolant hose (2) slightly forward.

Lock clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully straighten refrigerant tank vent line (1) slightly on the curves (arrows). Or extend the coolant ventilation line (1) slightly.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Slacken bridge.

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that the centering pin (1) lies in the center of the bridge.

Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber mount (1) with lubricant (for installation aid see applicable BMW Electronic Parts Catalog).

Courtesy of BMW OF NORTH AMERICA, INC.

Install rubber mount (1) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1), right on the bridge.

Tightening torque 41 33 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1), left on the bridge.

Tightening torque 41 33 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

If the cooling module is correctly installed, the centering pin (1) juts out on the left and right by around 2 mm (2) from the rubber mount.

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that the refrigerant line (1) does not lie on the air duct (2), if required cut the air duct opening with appropriate tool (see graphic).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount strut (3).

Tighten screw (1).

Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted:

Mount strut (2).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that there is enough distance between the strut and the cooling module.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install INTAKE SILENCER HOUSING .
Install INTAKE MANIFOLD .
Install front UNDERBODY PROTECTION .
Install front BUMPER COVER
