Removing and installing/replacing underbody protection (front)

NOTE: Picture for example purposes. There may be differences in detail in the case of other models.

Removal:

If installed:

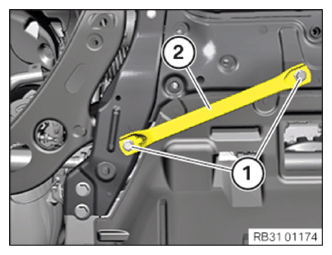

Loosen screws (1).

Remove cross-member (2).

Courtesy of BMW OF NORTH AMERICA, INC.

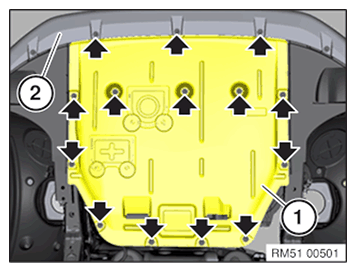

Remove screws (arrows).

Pull out and remove the underbody protection (1) under the bumper cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in and position the underbody protection (1) under the bumper cover (2).

Tighten the screws (arrows).

Tightening torque 51 71 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

If installed:

Position the cross-member (2).

Replace screws (1).

Parts: Screws

Tighten down screws (1).

Tightening torque 31 11 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.
