Remove and install front bumper cover

Removal:

Release trim (1) from detents (2) and clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.

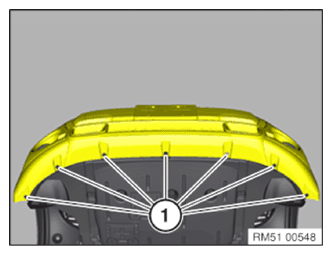

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

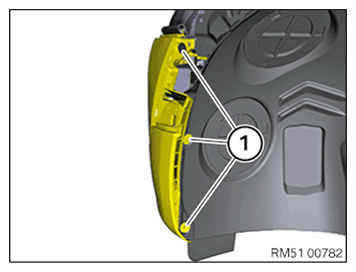

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Pull bumper cover (2) slightly towards the front with aid of a support person.

Unlock and disconnect all plug connections depending on equipment specification.

Remove bumper cover (2) towards the front with the aid of a support person.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position bumper cover (2) with the aid of a second person.

Connect all plug connections.

Tighten down screws (1).

Tightening torque 51 11 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten trim (1) on detents (2) and clips (3).
