Removing and installing/replacing complete prop shaft center bearing (Cooper ALL4)

Special tools required:

• 00 7 500
• 26 1 150
• 33 1 020
• 33 5 070
• 33 0 080
• 23 2 430

Preliminary work needed:

• Remove PROP SHAFT .

Removal:

The front and rear prop shaft must be re- assembled in the same installation position.

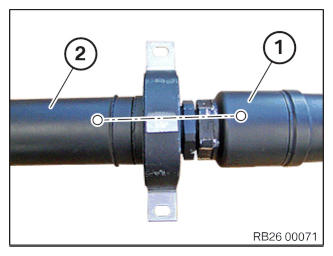

Mark front prop shaft (1) and rear prop shaft (2) in one plane.

Courtesy of BMW OF NORTH AMERICA, INC.

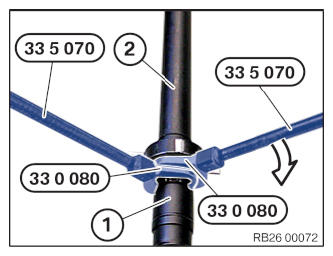

Hold prop shaft (1) with special tool 33 5 070 and 33 0 080.

Loosen nut from prop shaft (2) with special tool 33 5 070 and 33 0 080.

Courtesy of BMW OF NORTH AMERICA, INC.

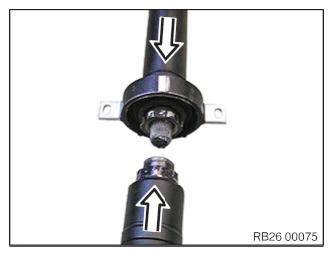

Pull apart prop shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

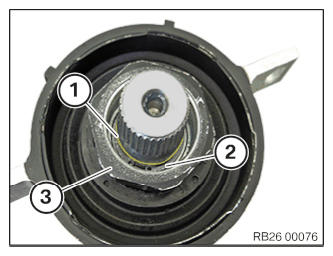

Remove sealing ring (1), snapring (2) and flange nut (3).

Courtesy of BMW OF NORTH AMERICA, INC.

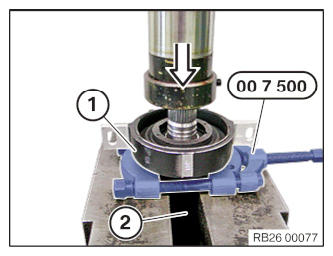

Install special tool 00 7 500 between central mount (1) and prop shaft (2).

Push off central mount (1) from the prop shaft (2) using a hydraulic press.

Courtesy of BMW OF NORTH AMERICA, INC.

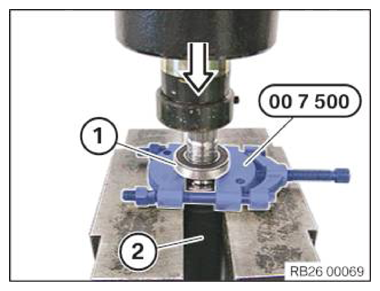

Install special tool 00 7 500 between grooved ball bearing (1) and prop shaft (2).

Using a hydraulic press, force deep groove ball bearing (1) off prop shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Parts: Replace grooved ball bearing.

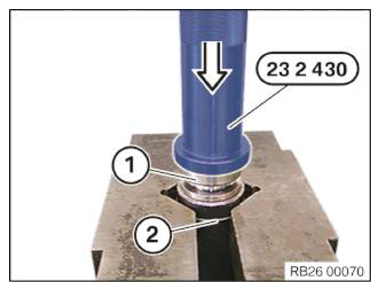

Use special tool 23 2 430 to press new grooved ball bearing (1) on to prop shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Parts  : Replace central mount.

Push new central mount (1) onto grooved ball bearing and press on with special tool 23 2 430.

Courtesy of BMW OF NORTH AMERICA, INC.

Parts:  Replace flange nut, snapring and sealing ring.

Install sealing ring (3), snapring (2) and flange nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

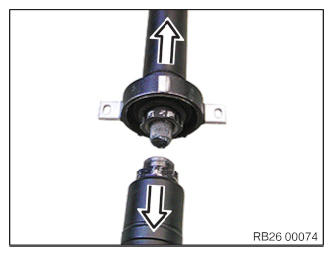

Push prop shaft together and secure.

Tightening torque: 26 11 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install PROP SHAFT .
