Front Panel Installation Procedure (Cooper Clubman F54)
To avoid unnecessary adjustment work, apply the following procedure.
Observe FRAME REFERENCE DIMENSIONS .
Step 1: Setting of deformation element

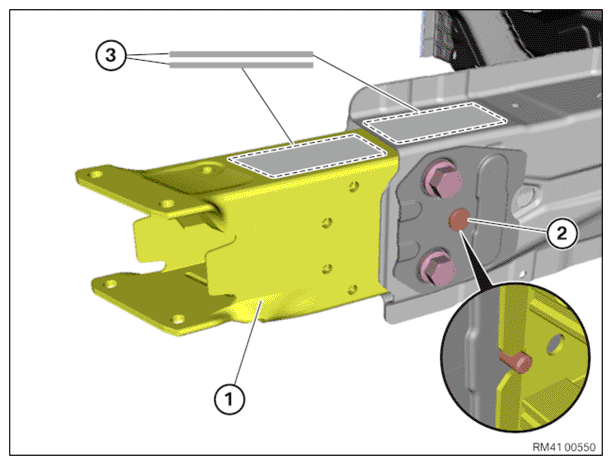

Set the deformation element (1) so that the areas (3) are parallel.
NOTE:
The deformation element cannot be height-adjusted because of the stop (2).
Refer to REMOVE AND INSTALL/REPLACE DEFORMATION ELEMENT FOR FRONT LEFT BUMPER and REMOVE AND INSTALL/REPLACE DEFORMATION ELEMENT FOR FRONT RIGHT BUMPER .
Sten 2: Settinn of "cross connection support."

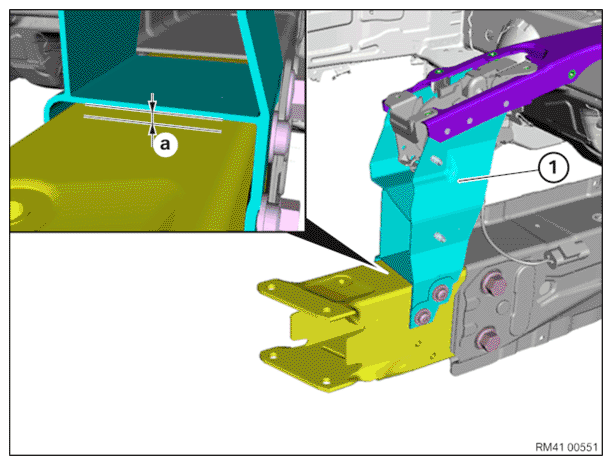

Set the cross connection support (1) according to the specified dimensions.
Dimension a = approx. 3 mm.
NOTE:
If the cross connection support is removed on only one side of the vehicle, measure dimension a on the side where it has not been removed and apply it as the setting dimension.
Refer to REPLACE GIRDER FOR LEFT CROSS CONNECTION and REPLACE GIRDER OF RIGHT CROSS CONNECTION .
- Tighten all screw connections with TIGHTENING TORQUE .
