Frame Reference Dimension, Body (Cooper Clubman F54)

Dimensions in mm.

Dimensional tolerances:

The checkpoints shown serve to check the body and the set of attachments.

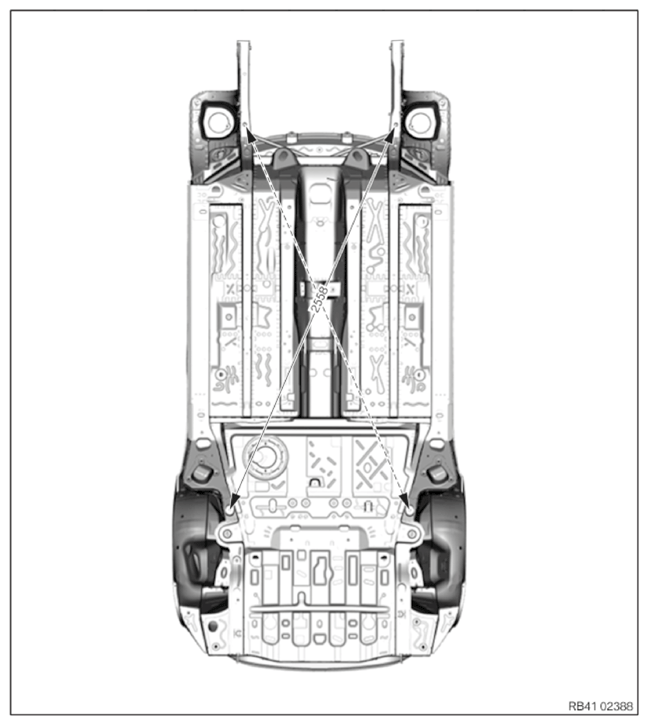

View Of Vehicle Underbody 1

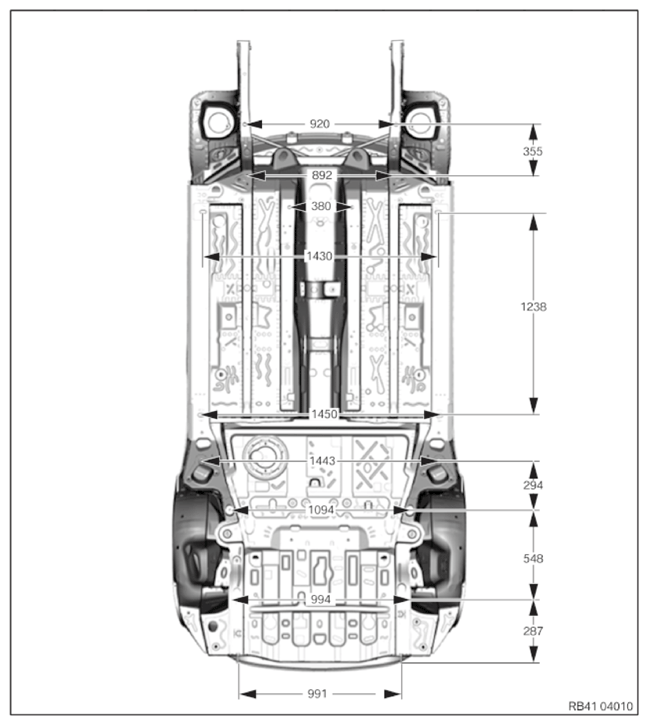

Fig 1: Underbody Frame Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

View Of Vehicle Underbody 2

Courtesy of BMW OF NORTH AMERICA, INC.

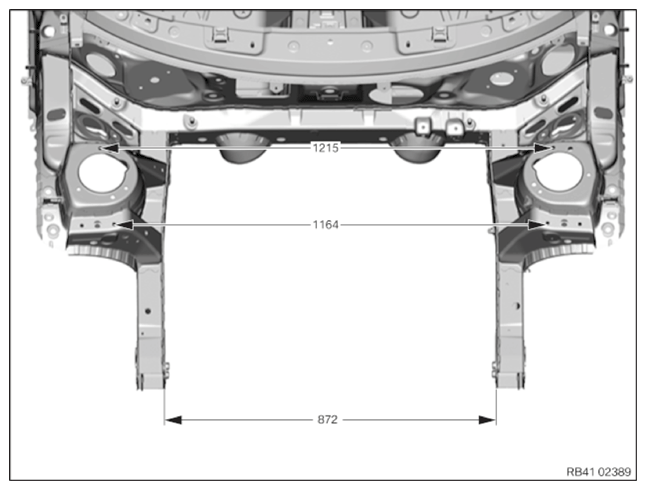

Front End View

Fig 2: Front End Frame Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

View, B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1521 mm between screw-on points of door checks.
