Replacing backrest cover for rear seat, center

Preliminary work needed:

• Remove left BACKREST  for rear seat.
• Remove ARMREST .
• Remove REAR MIDDLE GUIDE SLEEVES  for head restraint
• Remove REAR PANEL  on center rear seat backrest

Removal:

Unlock backrest for center rear seat (1) and remove from left backrest (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

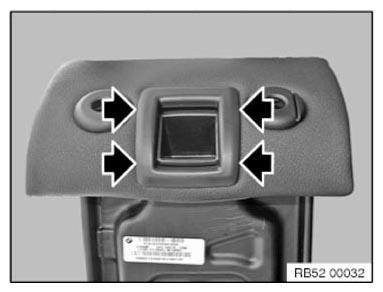

Insert plastic wedge from outside between trim and lock.

Carefully lever out trim from detent with plastic wedge in upward direction.

Remove trim upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

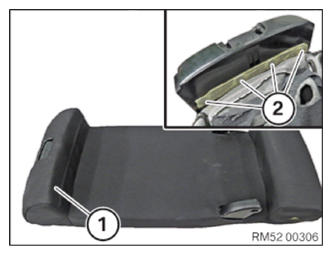

Fold back cover (1) and underlying clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

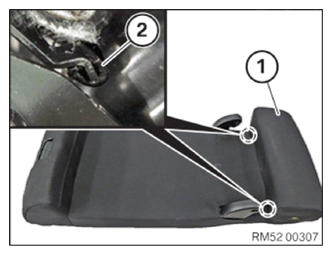

Fold back the cover (1) and unclip the hook (2).

Remove seat cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lay on the cover (1) and clip in the hook (2).

Tighten cover completely (1) over backrest.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the clips (2).

Tighten cover (1) over backrest.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in trim from above.

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure plastic bushing (1) is fitted correctly in the backrest frame.

The plastic bushing (1) must be retained in the backrest frame.

If applicable, clip the plastic bushing (1) in from the inside out.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock backrest for center rear seat (1) and remove from left backrest (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR MIDDLE GUIDE SLEEVE  for head restraint
• Install the ARMREST .
• Install the REAR PANEL  on center rear seat backrest.
• Install left BACKREST  for rear seat
