Removing and installing/replacing rear panel on rear center seat backrest
Version with lashing point:

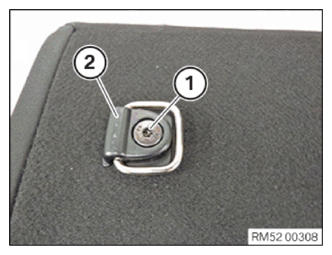

Remove screw (1).
Tightening torque 52 26 6AZ .
Remove lashing point (2) from backrest.

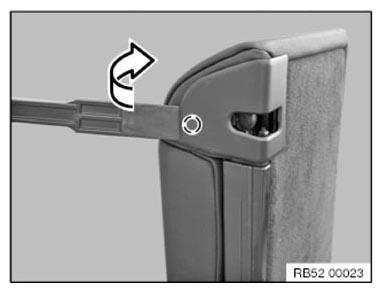

Unclip trim for lock with a plastic wedge.
Shift trim cover for locking mechanism a little towards the middle.
Detach trim cover for lock by pulling towards rear.
Installation note:

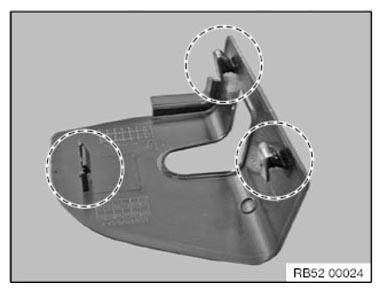

Retaining lugs on the trim cover for the lock must not be damaged.
Replace defective trim cover for lock.

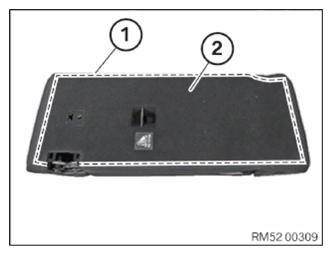

Lever out welt (1).
Detach rear panel (2).
Installation note:
Insert the rear panel in the backrest frame first.
Insert welt of backrest cover in frame.
