Removing and installing/replacing rear spoiler

Preliminary work needed:

• Lower roofliner. Refer to: HEADLINING (WITHOUT SLIDING/TILTING SUNROOF)  or HEADLINING (WITH SLIDING/TILTING SUNROOF) .

Removal:

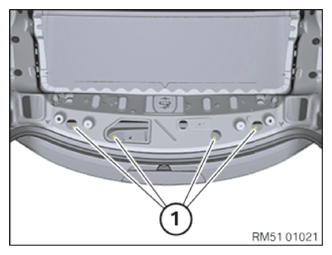

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

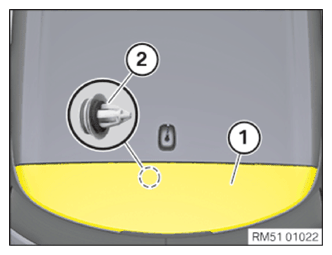

Unclip trim (1) from the clip (2).

Feed out cover (1) towards the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in trim (1) forwards.

Clip trim (1) into the clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 51 71 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Fit the headlining. Refer to: HEADLINING (WITHOUT SLIDING/TILTING SUNROOF)  or HEADLINING (WITH SLIDING/TILTING SUNROOF) .
