Removing and installing/replacing complete rear left or right power electric windows

Preliminary work needed:

• Remove rear door WINDOW GLASS .
• Remove rear SOUND INSULATION .

Removal:

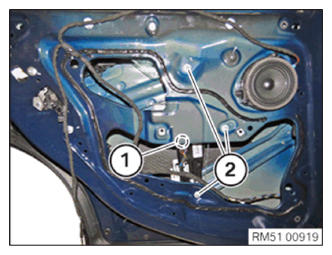

Unfasten plug connection (1) and disconnect.

Release nuts (2) and feed out power electric windows.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remount FLAT MOTOR for power electric windows.

Installation:

Feed in power electric windows and tighten the nuts (2).

Tightening torque 51 35 5AZ .

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install rear door WINDOW GLASS .
• Install rear SOUND INSULATION .
