Removing and installing/replacing guide for bumper, rear left or right

Preliminary work needed:

• Remove REAR BUMPER TRIM .

Removal:

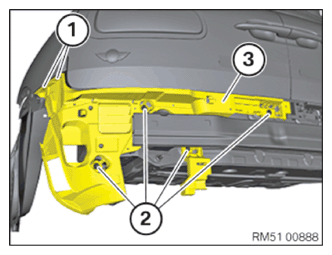

Unscrew the screws (1).

Unscrew nuts (2).

Detach cable and remove guide (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach guide (3) and tighten nuts (2).

Tightening torque 51 12 2AZ .

Tighten down screws (1)

Tightening torque 51 12 2AZ .

Attach cable.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR BUMPER PANEL .
