Removing and installing/replacing support for rear bumper panel

Preliminary work needed:

• Remove BUMPER COVER .

Removal:

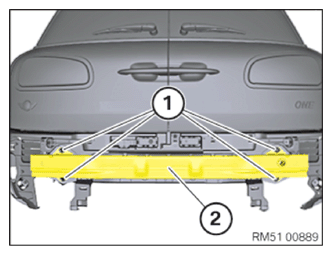

Slacken nuts (1) and remove support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach support (2) and tighten nuts (1).

Tightening torque 51 12 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install BUMPER COVER .
