Removing and installing/replacing left or right number/license plate light (Cooper)

Special tools required:

WARNING: Follow NOTES for handling light bulbs (exterior lighting).

Removal:

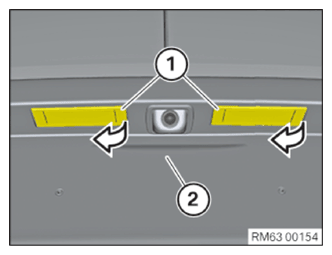

Lever out the number plate light (1) from the bumper cover (2) in arrow direction using special tool 64 1 020.

Unlock and disconnect corresponding connector.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Installation:

Connect the corresponding connector with the number plate light (1).

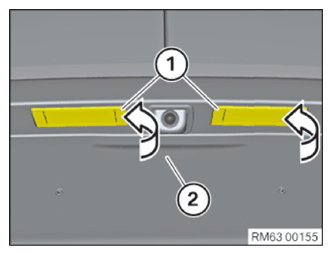

Install the number plate light (1) into the bumper cover (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
