Removing and installing/replacing trim on rear left or right wheel arch

Removal:

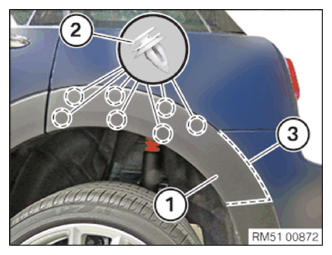

Release trim (1) from clips (2).

Release and remove trim (1) in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Check clips (2) on the trim panel (1) for damage and replace if necessary.
Retaining lugs in area (3) on trim panel (1) must not be damaged.

Clip in trim (1) and clip into clips (2).

Engage trim (1) in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.
