Removing and installing left or right locator for rear parcel shelf (Cooper Convertible)

Preliminary work needed  :

• Remove COVER  from tail panel.
• Unlock LOADING AID and support soft top bow

Removal:

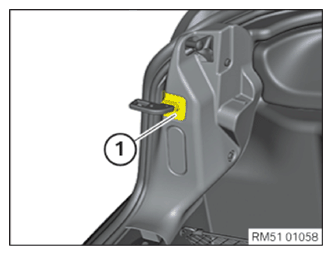

Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

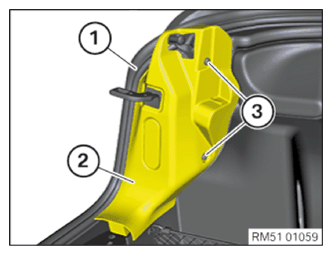

Release edge protection (1) in the area of the mounting for storage shelf (2).

Loosen screws (3).

Take out and remove the mounting for storage shelf (2) from the strikers.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement  :

If required remount switch for CONVERTIBLE TOP/STORAGE SHELF .

Insert mounting for storage shelf (2) on the striker.

Mount edge protection (1) in the area of the mounting for storage shelf (2).

Tighten down screws (3).

Tightening torque 51 47 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work  :

• Install COVER  for tail panel.
• Lock LOADING AID
