Removing and installing/replacing top cover on tail panel (Cooper Convertible)

Preliminary work needed:

• Remove LUGGAGE COMPARTMENT FLOOR COVERING .

Removal  :

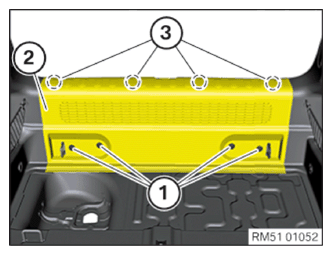

Remove expanding rivet (1).

Take out trim (2) over the left and right lashing points.

Remove trim (2) from the clamps (3) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation  :

Install trim (2) and engage in clamps (3).

Insert trim (2) over the left and right lashing points

Install expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install LUGGAGE COMPARTMENT FLOOR COVERING .
