Replacing the dashboard trim (Cooper Convertible)

Preliminary work needed  :

• Remove DASHBOARD TRIM .
• Remove AIRBAG UNIT on passenger's side.
• Remove DECORATIVE STRIP  on dashboard on left.
• Remove/replace right FRESH AIR GRILLE and/or remove/replace left FRESH AIR GRILLE
• Remove SPEAKER (tweeter)

Removal  :

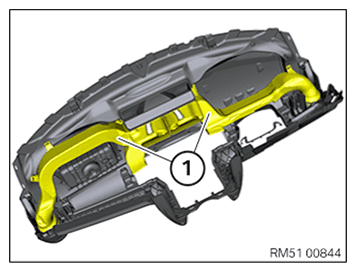

Remove air ducts (1).

If necessary, remove other mounting elements that are not included with the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation  :

Install air ducts (1).

If necessary, install other mounting elements that are not included with the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install AIRBAG UNIT on passenger's side.
• Install DECORATIVE STRIP  on left dashboard.
• Install the right RIGHT FRESH AIR GRILLE and/or left FRESH AIR GRILLE .
• Install SPEAKER (tweeter)
• Install DASHBOARD TRIM .
