65 13 062 Removing and installing/replacing loudspeaker (tweeter, in dashboard) (Cooper Convertible)

Preliminary work needed:

• Remove MID-RANGE SPEAKER .

Removal:

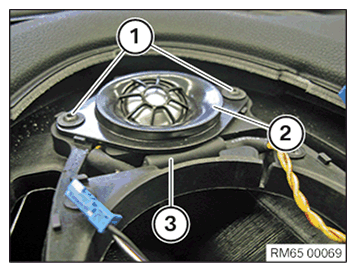

Unscrew the screws (1).

Remove tweeter (2).

Feed out resistor (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Correctly feed in resistor (3).

Position tweeter (2).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install MID-RANGE SPEAKER .
