51 12 825 Removing and installing/replacing guide for rear center bumper
WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR BUMPER TRIM

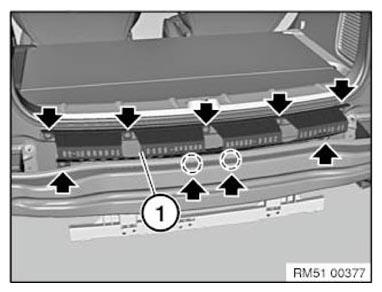

Release screws.
Tightening torque 51 12 3AZ .
If necessary, disconnect the plug connection for the bumper aerial.
Remove guide (1).
Replacement:
Modify the BUMPER AERIAL .
