51 16 365 Removing and installing/replacing glove box cover
WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove RIGHT GLOVE BOX WITH HOUSING

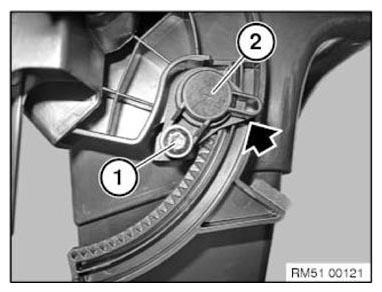

Release screw (1) from damping element (2).
Installation note:
Correctly feed sliding pin on damping element (2) back into slide rail of glove box cover.

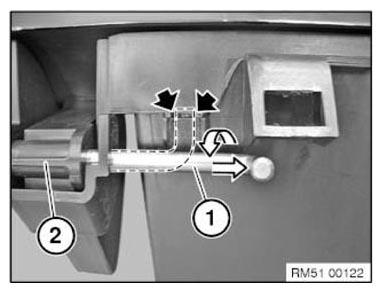

Unlock the hinge bolt (1) at the stop and remove it by turning it to the point where the hinge bolt (1) can be pulled out of the hinge (2) of the glove box cover.
Repeat procedure for second hinge bolt (1).
Installation note:
Correctly lock hinge bolt after installation.
