51 16 366 Removing and installing right glove box with housing

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LOWER INSTRUMENT PANEL TRIM

Open glove box cover if necessary.

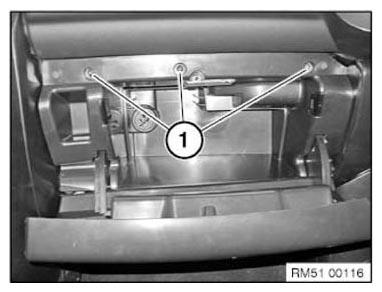

Release screws (1).

Fig 1: Identifying Glove Box Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

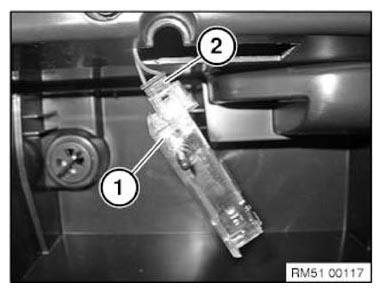

Lever out glove box light (1).

Disconnect plug connection (2).

Fig 2: Identifying Glove Box Light And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

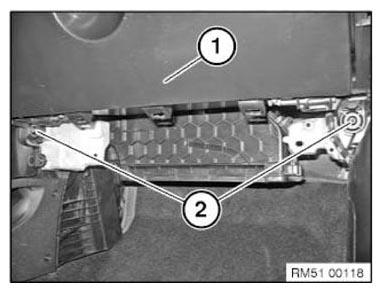

Unfasten screws (2).

Pull out glove box at right with housing (1) and set it down.

Fig 3: Identifying Glove Box Housing And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
