51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Fold the left rear seat down
Remove REAR APRON TRIM
Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Remove cover (1).

Disengage Bowden cable for tank release mechanism (2).

Fig 1: Identifying Cover And Tank Release Mechanism Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen rotary clips (1).

Release expanding rivets (2 and 3).

Feed out luggage compartment wheel arch trim (4).

Installation note:

Replace faulty rotary clips (1) and expanding rivets (2 and 3).

Ensure that edge protection (5) is correctly seated.

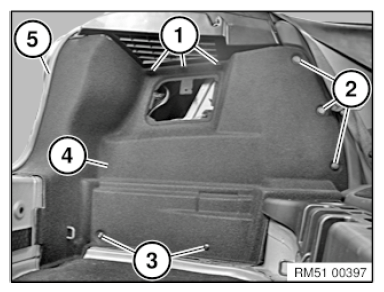

Fig 2: Identifying Luggage Compartment Wheel Arch Trim, Expanding Rivets, Rotary Clips, And Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.
