51 46 050 Removing and installing/replacing top cover on tail panel

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove warning triangle.

Release screws (1) and remove warning triangle holder.

If necessary, release expanding rivets (2).

Fig 1: Locating Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Release cover (2) from clips (1) and lift out.

Installation note:

Make sure edge protection (3) is correctly seated.

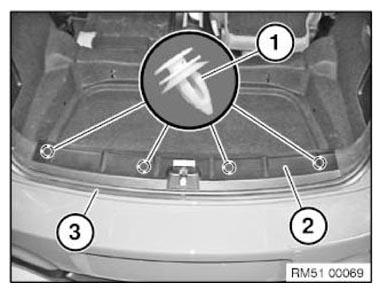

Fig 2: Identifying Edge Protection, Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips (1) on cover (2).

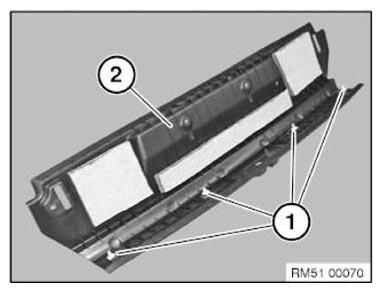

Fig 3: Identifying Clips On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
