11 31 051 Replacing timing chain (N16)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Modified procedure for timing adjustment.
The timing is not determined at firing TDC of cylinder no. 1.
All pistons are in the 90° position.
Observe direction of engine rotation (direction of rotation always clockwise when viewed towards timing drive side).
The sump does not have to be removed for this operation.

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER .
Remove all spark plugs.
Remove BELT TENSIONER .
Remove VIBRATION DAMPER .
Remove CHAIN TENSIONER .
Remove both VANOS UNITS .
Remove PTFE RING at front.

Do not remove special tool 11 9 590 during repair work.

Fig 1: Locking Flywheel With Special Tool (11 9 590)

Courtesy of BMW OF NORTH AMERICA, INC.

Attach the engine lifter (1) to the engine mounting bracket (2).

Slightly raise the engine with the engine lifter.

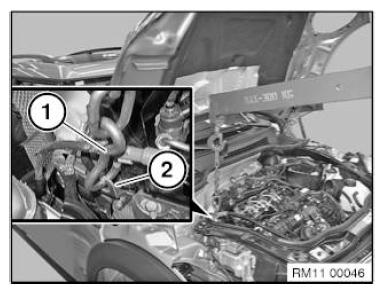

Fig 2: Attaching Engine Crane To Engine Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Release upper alternator screws (1). Do not remove alternator.

Secure special tool 11 9 630 with standard bolts (1).

Lower the engine lifter and make sure that the ground support point (2) is not damaged.

Place the special tool 11 9 630 onto the side member.

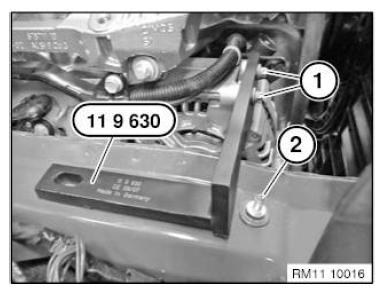

Fig 3: Securing Special Tool (11 9 630) With Standard Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Undo bolts (1) and remove ADAPTER PLATE .

Remove right ENGINE MOUNT .

Fig 4: Identifying Adapter Plate Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Do not remove special tool 11 9 540 .

Fig 5: Mounting Special Tool (11 9 540) On Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Employ a second person for gripping when releasing central bolt (1).

Fit special tool 11 9 280 on hub for vibration absorber with screws (2).

NOTE: Illustration shows engine removed.

Fig 6: Fitting Special Tool (11 9 280) On Vibration Absorber Hub

Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolt in direction of arrow.

Tightening torque: 11 21 1AZ .

NOTE: Illustration shows engine removed.

Fig 7: Releasing Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release bearing journal (1 and 2).

Tightening torque: 11 11 4AZ .

Fig 8: Identifying Bearing Journals Of Chain Module

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hub (3) towards front.

Remove chain module with timing chain.

NOTE: Illustration shows engine removed.

Fig 9: Removing Hub Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The oil pump sprocket must remain fixed on the crankshaft hub.
If the sprocket falls in the sump, the sump will have to be removed.

Sprocket (1) of timing chain.

Sprocket (2) of oil pump.

Fig 10: Identifying Timing Chain And Oil Pump Sprockets

Courtesy of BMW OF NORTH AMERICA, INC.

Secure chain module (1) with rubber part (3) to facilitate assembly.

Pull timing chain (2) upwards until sprocket (4) rests against chain guide (1).

Install timing chain (2) and sprocket (4) in this position.

Installation note:

Always keep timing chain (2) tensioned; it is possible for timing chain (2) to jam on chain module (1).

Fig 11: Identifying Chain Module, Timing Chain, Rubber Part And Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hub (3) towards front.

Remove chain module with timing chain.

NOTE: Illustration shows engine removed.

Fig 12: Removing Hub Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Check oil pump sprocket (2) is in correct installation position.

Insert chain module with timing chain and secure.

Attach crankshaft hub.

Screw in central bolt.

Fig 13: Checking Oil Pump Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation position of both sprockets.

Sprocket (1) of oil pump.

Guide rail (2) of timing chain.

Hub (3) on crankshaft.

Sprocket (4) of timing chain.

Fig 14: Installation Position For Oil Pump And Timing Chain Sprockets

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 280 from hub.

Secure central bolt with special tool 00 9 120 .

Fig 15: Securing Central Bolt With Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Install VANOS ADJUSTMENT UNITS .

Crank engine twice.

Check TIMING .

Install PTFE RING .

Assemble engine.
