41 35 081 Removing and installing/replacing front side panel, left or right
WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Observe GAP DIMENSIONS .
Attention:
Do not damage adjoining body components.
Necessary preliminary tasks:
- Remove COVER FROM WHEEL ARCH at front left
- Remove TRIM PANEL FOR COVER ON SIDE MEMBER at left
- Remove cowl panel cover. See REMOVING LEFT COWL PANEL COVER or REMOVING RIGHT COWL PANEL COVER .

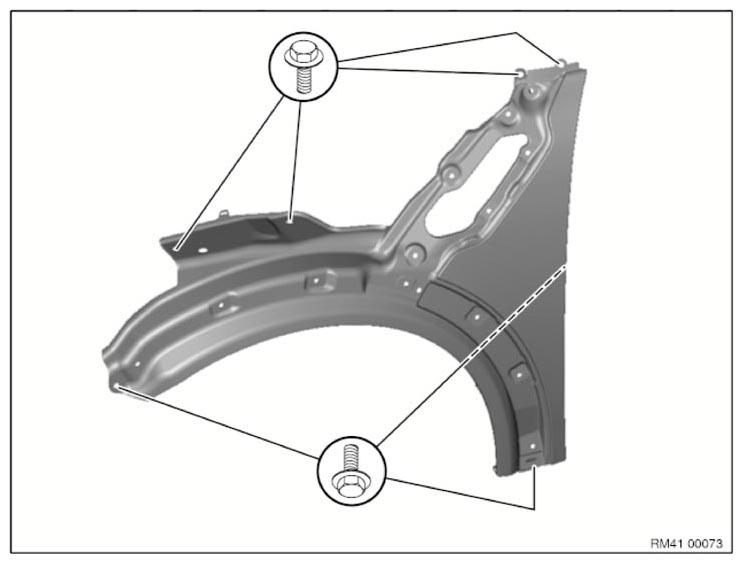

Release screws.
Tightening torque: 8 Nm
