41 33 695 Removing and installing lock bridge

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CENTER RADIATOR GRILLE
Remove headlight. See REMOVING HALOGEN HEADLIGHTS or REMOVING XENON HEADLIGHTS .

Release screws (1).

Undo screws (2) for bonnet locks. See REMOVING RIGHT ENGINE COMPARTMENT LID LOCK and REMOVING LEFT HOOD/BONNET LOCK .

Only vehicles with turbocharger:

Lift out expanding rivet (3).

Release screws (4).

Tightening torque 51 11 7AZ

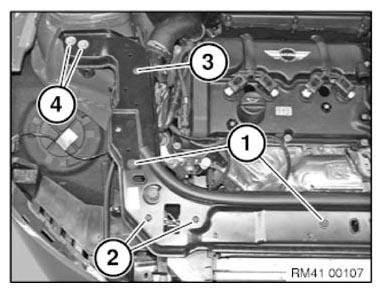

Fig 1: Identifying Expanding Rivet And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Undo screws (2) for bonnet locks.

Lift out expanding rivet (3).

Release PULL CABLE (4) for bonnet locks.

Undo screws (5) and remove lock bridge.

Tightening torque 51 11 7AZ

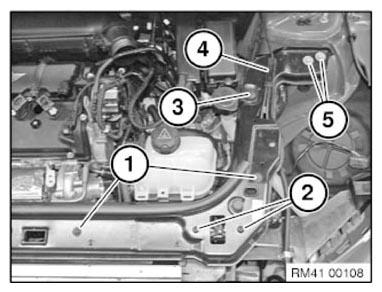

Fig 2: Identifying Expanding Rivet And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
