64 11 212 Removing and installing/replacing heater/air conditioner fan

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM at bottom left
Remove the EGS CONTROL UNIT(vehicles with automatic transmission only)

NOTE: Right hand drive vehicles:

Blower is located above clutch pedal (brake pedal in automatic transmission vehicles) on bulkhead.

On these vehicles DASHBOARD WITH SUPPORT must also be removed.

Release screws (1) and remove cover (2).

Fig 1: Identifying Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Left hand drive vehicles:

Blower (1) is located above accelerator pedal on bulkhead.

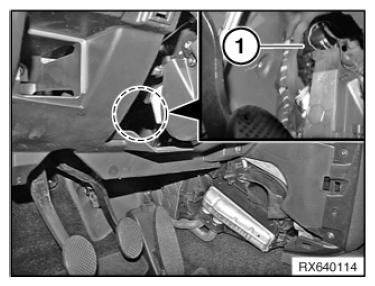

Fig 2: Locating HVAC Blower

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows dashboard removed.

Disconnect plug connection (1).

Release screws (2) and feed out blower (3).

Fig 3: Identifying Blower, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
