24 61 500 Removing and installing or replacing transmission control unit

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

CLAMP OFF BATTERY .

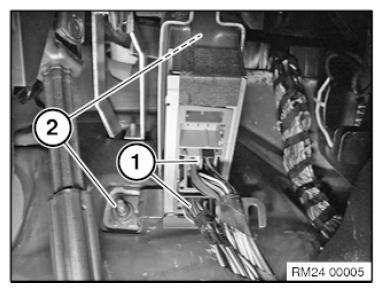

Installation location: Above pedal mechanism

Release plug connections (1) and disconnect.

Unscrew nuts (2).

Tightening torque 24 61 1AZ .

Remove bracket and control unit.

Fig 1: Identifying Plug Connections And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

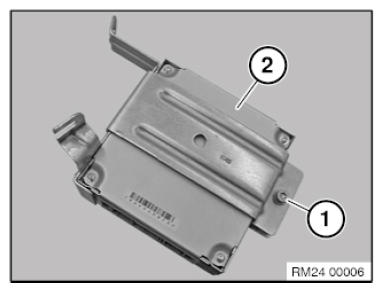

Release screw (1) and remove control unit (2) from bracket.

Tightening torque 24 61 2AZ .

IMPORTANT: The adaptation values must be reset after the control unit has been replaced.

Fig 2: Identifying Control Unit And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
