24 10 006 Removing and installing/replacing gear position switch (AISIN)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: An incorrectly adjusted gearshift mechanism can result in gear tooth meshing noises being transmitted to the passenger compartment.
Adjust SELECTOR LEVER .

Necessary preliminary tasks:

Remove gaiter for intake silencer housing
Drain coolant. See DRAINING/TOPPING UP COOLANT (N16) or DRAINING/TOPPING UP COOLANT (N18) .
Remove intake silencer housing. See REMOVING INTAKE SILENCER HOUSING (N16) or REMOVING INTAKE SILENCER HOUSING (N18) .
Remove COOLANT EXPANSION TANK

Detach wiring harness (1) from bracket (2) and pull up.

Release spring band clamp (3) on coolant hose with special tool 17 2 051 .

Remove coolant hose.

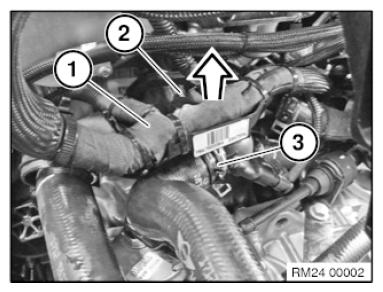

Fig 1: Removing Coolant Hose Spring Band Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) from transmission position sensor and disconnect.

Release nut (2) and remove selector lever (3).

Tightening torque 24 11 6AZ .

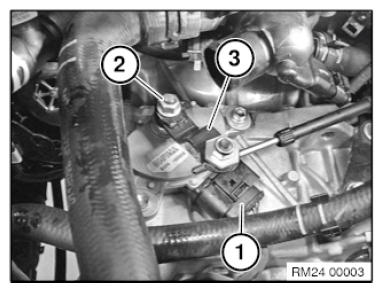

Fig 2: Identifying Selector Lever, Plug Connection And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release washer (1), lock washer (2) and nut (3).

Release screws (4).

Remove switch.

Installation note:

Insert screws (4) slightly.

Fit washer, lock washer and nut.

Tightening torque 24 11 12AZ .

Fig 3: Identifying Washer, Lock Washer, Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tool 24 4 270 .

Tighten screw (1).

Align gear position switch to "N".

Tighten down screws (2).

Tightening torque 24 11 12AZ .

Installation note:

Connect gear position switch connector

Fig 4: Mounting Special Tool (24 4 270)

Courtesy of BMW OF NORTH AMERICA, INC.
