34 51 527 Removing and installing/replacing hydraulic unit for DSC

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

After completing the repair work, BLEED BRAKE SYSTEM .

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Securing Brake Pedal With Pedal Support
G04754178Courtesy of BMW OF NORTH AMERICA, INC.

Remove line holder (1) from bulkhead.

Disconnect plug connection (2).

IMPORTANT: Do not mix up brake lines and if necessary mark prior to removal.
Close off connecting bores with seal plugs.
Brake lines must not be bent.

Unfasten brake lines (3).

Installation note:

Tightening torque 34 32 1AZ .

Fig 2: Identifying Line Holder, Plug Connection And Brake Lines
G04797043Courtesy of BMW OF NORTH AMERICA, INC.

Raise vehicle.

Release screws (1) from below.

Installation note:

Tightening torque 34 51 2AZ .

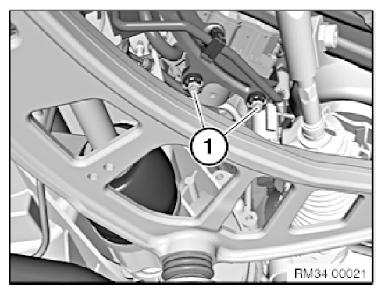

Fig 3: Identifying Screws
G10995029Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

The clutch hydraulic line can be easily pressed to one side by release the holder.

Release screw (2).

Installation note:

Tightening torque 34 51 2AZ .

First raise hydraulic unit (3) a little and then swing out.

Fig 4: Identifying Hydraulic Unit And Screws
G04797044Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure rubber mounts (1) are correctly fitted in bores.

Fig 5: Identifying Rubber Mounts
G04797045Courtesy of BMW OF NORTH AMERICA, INC.

Adjustment of steering angle sensor

Brake line mix-up test:

Function check, hydraulic unit

Replacement:
