11 25 671 Replacing piston rings on all pistons (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove all PISTONS .

Measuring side clearance of piston rings in piston ring groove.

TECHNICAL DATA .

NOTE: It is not possible to measure the axial clearance of the M-flex rings.

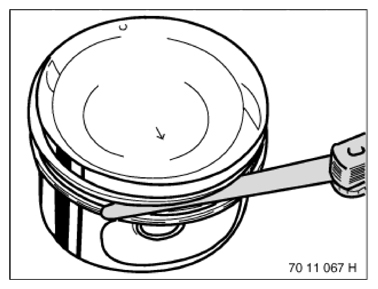

Fig 1: Measuring Piston Rings Side Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plain rectangular compression ring and stepped ring upwards with piston ring pliers.

The M-flex ring comprises two steel band rings and a bearing spring.

NOTE: The M-flex ring cannot be removed with piston ring pliers.

Put aside all piston rings in correct sequence and installation position.

It might not be possible to find the identification on used piston rings.

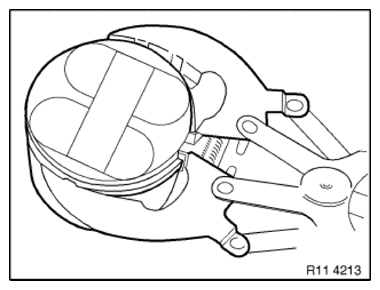

Fig 2: Removing Plain Rectangular Compression Ring And Stepped Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

New pistons may only be installed together with new piston rings.

Insert removed piston ring into cylinder bore hole.

With aid of piston (piston crown), position piston ring in its measuring position.

Determine END CLEARANCE with a feeler gauge.

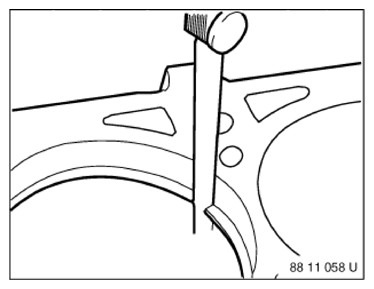

Fig 3: Checking Piston Ring End Clearance Using Feeler Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

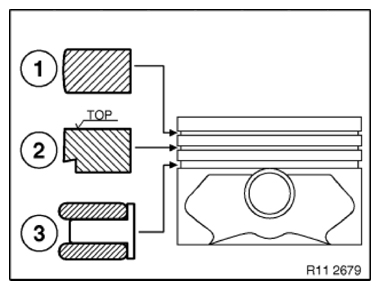

NOTE: Schematic diagram of piston rings.

Installation note:

Plain rectangular compression ring "top"
Piston ring "top"
Steel band with M-flex ring

Fig 4: Identifying Piston Rings
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Piston rings with "TOP" identification (1) must point to piston crown.

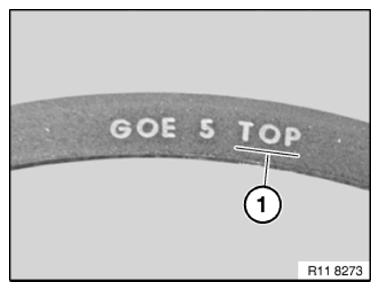

Fig 5: Identifying Piston Rings With TOP Identification

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The M-flex ring comprises two steel band rings (1) and a bearing spring (2).

Installation note:

Insert bearing spring (2) into piston ring groove and then fit steel band rings (1) so that contact points are offset by approx. 120°.

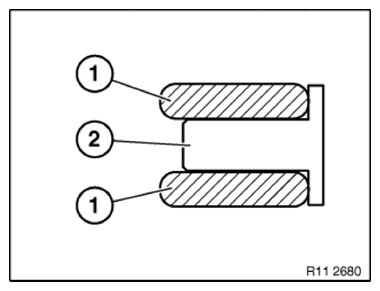

Fig 6: Identifying Steel Band Rings And Support Spring

Courtesy of BMW OF NORTH AMERICA, INC.

The contact points (1) of the piston rings must be arranged offset by approx. 120°. However, the contact points (1) must not be arranged over the gudgeon pin boss.

NOTE: Illustration shows N52.

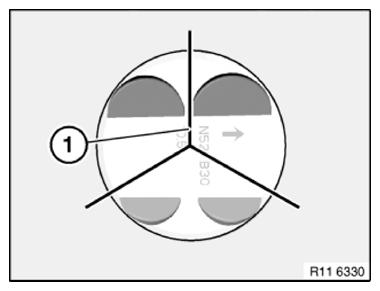

Fig 7: Identifying Contact Points Of Piston Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
