11 21 500 Replacing crankshaft (N63)

Special tools required:

• 00 2 010
• 00 9 120
• 11 4 350
• 11 6 251
• 11 6 252
• 13 5 020

Necessary preliminary work:

• Remove engine. See 11 00 050 REMOVING AND INSTALLING/REPLACING ENGINE (N63) .
• Mount engine on assembly stand. See 11 00 MOUNTING ENGINE ON ASSEMBLY STAND (N63) .
• Remove cylinder head.
• Remove HUB FOR VIBRATION DAMPER
• Removing lower timing case cover
• Removing oil pan. See 11 13 020 REMOVING AND INSTALLING/REPLACING LOWER OIL SUMP SECTION (N63) and 11 13 010 REMOVING AND INSTALLING/REPLACING UPPER OIL SUMP SECTION (N63)
• Remove OIL PUMP
• Removing PISTONS
• Remove FLYWHEEL
• Remove radial shaft seals. See 11 14 141 REPLACING RADIAL SHAFT SEAL IN LOWER TIMING CASE COVER (N63) and 11 14 151 REPLACING CRANKSHAFT RADIAL SEAL ON TRANSMISSION SIDE (N63) .
• Remove TIMING CHAINS

Installation note:

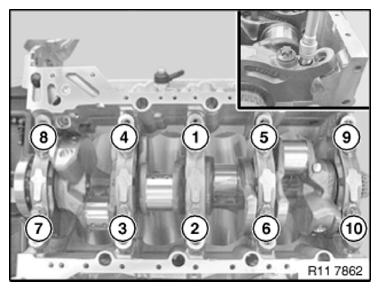

Layout of main bearing caps.

All numbers must be read from the cylinder bank (5 to 8) (see arrows in illustration).

Fig 1: Identifying Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

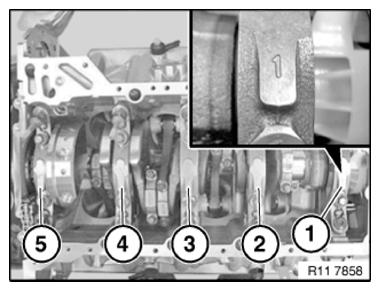

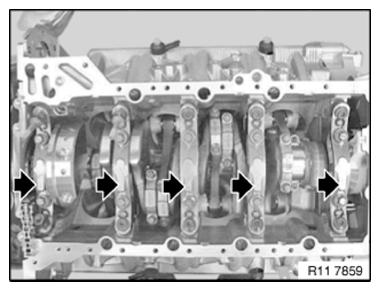

Main bearing caps (1 to 5) opposite the output end on the timing chain drive.

Fig 2: Identifying Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

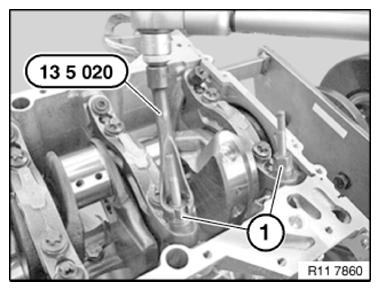

Release oil pump spacer bolts (1) with special tool 13 5 020 .

Fig 3: Releasing Oil Pump Spacer Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

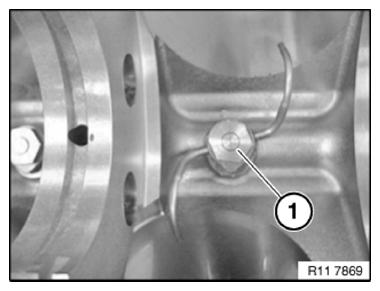

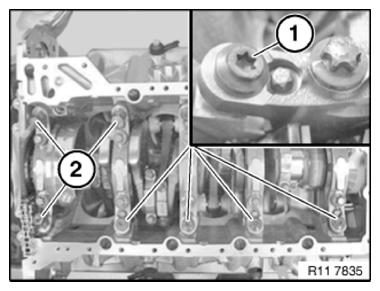

Release main bearing taper screw connection (1).

Release oil pump spacer pins (2).

Fig 4: Identifying Oil Pump Spacer Pins And Main Bearing Taper Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release all threaded support sleeves (1).

Fig 5: Identifying Threaded Support Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar bolts (M8) in sequence 10 to 1.

Fig 6: Crankshaft Bolts (M8) Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

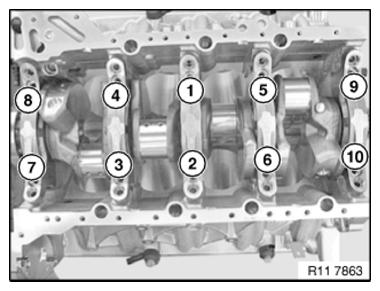

Release collar bolts (M11) in sequence 10 to 1.

Remove main bearing caps 1 to 5.

Lift out crankshaft and set down safely (secure against turning).

Fig 7: Crankshaft Bolts (M11) Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

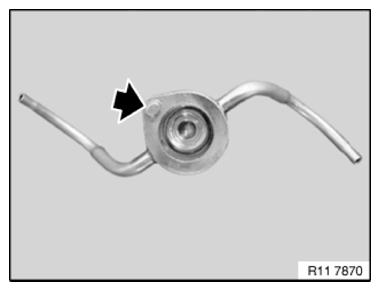

Release screw for oil nozzle (1).

Tightening torque: 11 11 8 AZ .

Fig 8: Identifying Screw For Oil Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check oil nozzle (1) for clear passage with compressed air.

Observe fastening on oil nozzle.

Fig 9: Locating Oil Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe fastening in crankcase.

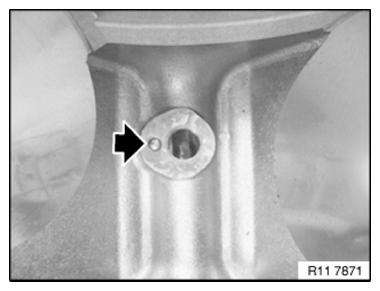

Fig 10: Identifying Installed Oil Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Replace CRANKSHAFT MAIN BEARING SHELLS .

Installation note:

Observe arrangement of main bearing caps.

All numbers must be read from the cylinder bank (5 to 8) (see arrows in illustration).

Fig 11: Identifying Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Main bearing caps (1) is opposite the output end on the timing chain drive.

Turn back all threaded support sleeves hand-tight.

Installation note:

Coat all bearing positions with engine oil.

Install crankshaft.

Fit bearing caps (1 to 5).

Fig 12: Identifying Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Set down bearing caps positioned from 1 to 5.

Insert all collar bolts (M11) hand-tight.

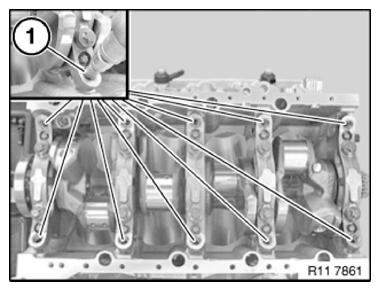

Secure collar bolts (M11) in sequence (1 to 10).

Fig 13: Crankshaft Bolts (M11) Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

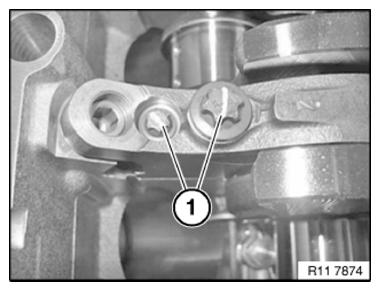

For a better overview of the screw connection quality, mark the head of all collar bolts after joining with a line (1) using an oil-proof marker pen.

Check angle tightening.

Fig 14: Identifying Mark On Collar Bolt Heads

Courtesy of BMW OF NORTH AMERICA, INC.

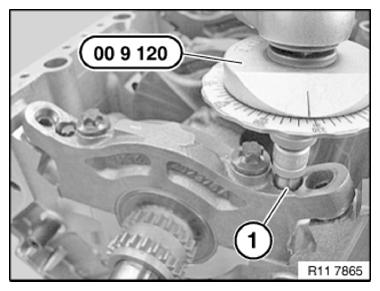

Secure collar bolt (1) with special tool 00 9 120 .

Tightening torque: 11 11 1AZ .

Fig 15: Tightening Collar Bolts Of Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Insert all collar bolts (M8) hand-tight.

Secure collar bolts (M8) in sequence (1 to 10).

Fig 16: Crankshaft Bolts (M8) Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

For a better overview of the screw connection quality, mark the head of all collar bolts after joining with a line (1) using an oil-proof marker pen.

Check angle tightening.

Fig 17: Identifying Mark On Collar Bolt Heads

Courtesy of BMW OF NORTH AMERICA, INC.

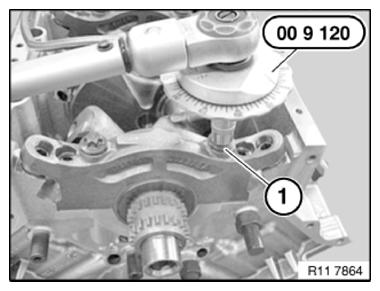

Secure collar bolt (1) with special tool 00 9 120 .

Fig 18: Securing Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

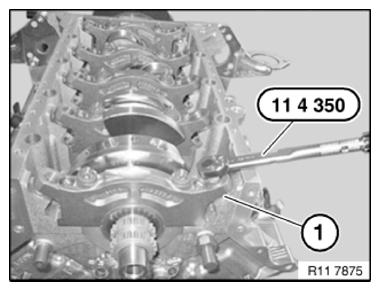

Secure all threaded support sleeves (1) with special tool 11 4 350 .

Tightening torque: 11 11 3 AZ .

Fig 19: Securing Threaded Support Sleeves Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

Secure main bearing taper screw connection (1).

Tightening torque: 11 11 4 AZ .

Secure oil pump spacer pins (2).

Tightening torque: 11 11 5 AZ .

Fig 20: Identifying Oil Pump Spacer Pins And Main Bearing Taper Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Check crankshaft COEFFICIENT OF FRICTION .

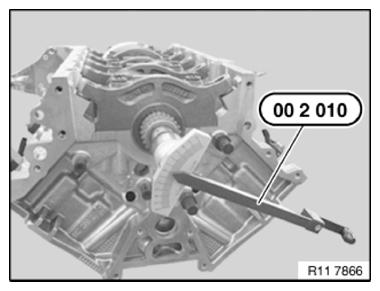

Determine crankshaft breakaway torque  with special tool 00 2 010 .

Rotate crankshaft at central bolt using special tool 00 2 010 .

If the breakaway torque is too high, it will be necessary to correct the bearing clearance. See N63 ENGINE .

Fig 21: Rotating Crankshaft Central Bolt Using Special Tool 00 2 010

Courtesy of BMW OF NORTH AMERICA, INC.

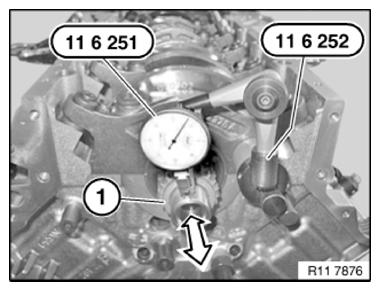

Secure special tool 11 6 252 to crankcase with magnetic base.

Slide crankshaft in direction of arrow forwards as far as it will go.

Set special tool 11 6 251 to zero.

Slide crankshaft (1) in direction of arrow towards rear and determine value.

Check axial play. See N63 ENGINE .

Fig 22: Checking Crankshaft Axial Play

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
