11 13 010 Removing and installing/replacing upper oil sump section (N63)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 240

Necessary preliminary tasks:

Secure engine in installation position . See 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N63) or 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N63O1) .
Lower front axle See 31 11 506 LOWERING/RAISING FRONT AXLE SUPPORT (ALL-WHEEL DRIVE VEHICLE) , 31 11 506 LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) or 31 11 506 LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) - M5, M6 .
Remove OIL PUMP
Remove FRONT AXLE DIFFERENTIAL (AWD only).
Remove front output shaft BEARING SUPPORT (AWD only).
Unclip wiring harness on oil sump.

Remove oil filter cover with oil filter (1) with special tool 11 9 240 .

Tightening torque: 11 42 1AZ .

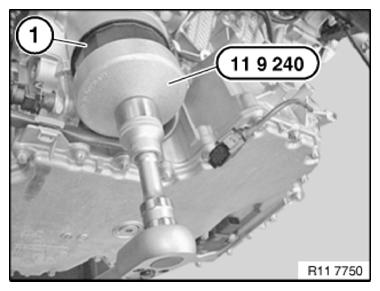

Fig 1: Removing/Installing Oil Filter Cover

G10041809

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1). Remove oil pipes (2) from oil filter housing.

Release holders of supply/return lines on oil sump

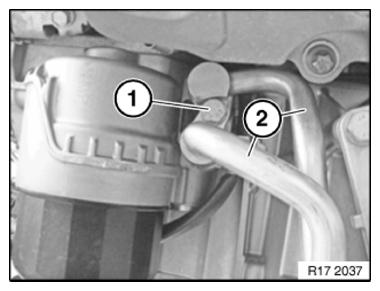

Fig 2: Identifying Oil Pipes And Bolt

G10041810

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque: 11 41 1AZ .

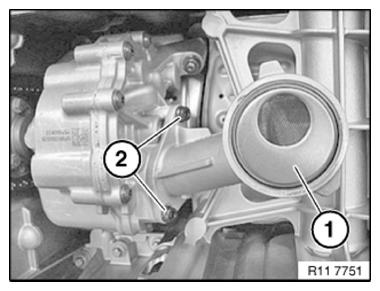

Fig 3: Identifying Oil Intake Pipe And Screws

G10041811

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts in area of line (1).

Tightening torque 11 13 2AZ .

Release bolts (2) on transmission side 24 00 1AZ .

Remove upper oil sump section (3).

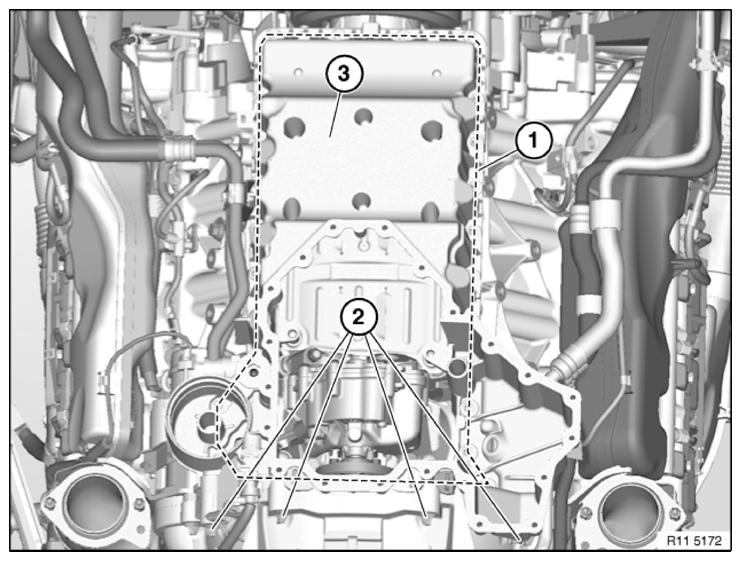

Fig 4: Identifying Upper Oil Sump Section

G10041812

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Free sealing surfaces of seal debris and clean.

Replace gasket.

Modify oil pressure switch if replacing oil sump.

Assemble engine.
