11 13 020 Removing and installing/replacing lower oil sump section (N63)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove underbody protection at front and rear. See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION and 51 47 491 REMOVING REFITTING/REPLACING REAR ENGINE UNDERCOVER .
RELEASE OIL DRAIN PLUG and drain engine oil.
Remove stiffening plate (all-wheel drive vehicle). See 31 11 040 REMOVE AND INSTALL/REPLACE STIFFENING PLATE (ALL-WHEEL DRIVE) .

Unlock plug connection (1) on oil level sensor and disconnect.

Release screws (2) along line.

Tightening torque 11 13 3AZ .

Remove lower oil sump section (3).

Installation note:

Clean sealing surfaces.

Replace gasket.

Replace screws.

When replacing lower oil sump section:

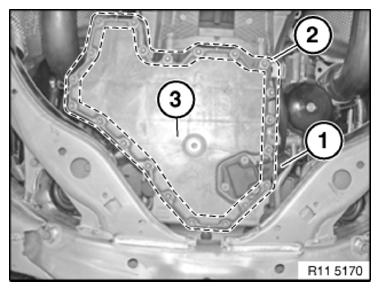

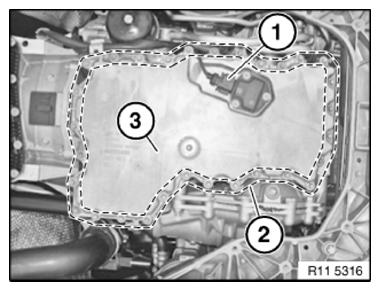

Fig 1: Identifying Lower Oil Sump Screws And Oil Level Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Convert oil level sensor.

Replace sealing ring.

NOTE: Procedure with four-wheel drive.
