11 14 110 Removing and installing lower timing case cover (N63O1)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 470

Necessary preliminary tasks:

Fully remove front axle together with engine.
Remove engine from front axle. See applicable procedure for drivetrain configuration: 11 00 598 REMOVING AND INSTALLING ENGINE ON FRONT AXLE (N63O1) WITH GA8HP70Z TRANSMISSION , 11 00 598 REMOVING AND INSTALLING ENGINE ON FRONT AXLE (N63O1) WITH GA8HP70Z ALL-WHEEL DRIVE VEHICLE TRANSMISSION , 11 00 598 REMOVING AND INSTALLING ENGINE ON FRONT AXLE (N63O1) WITH GA6HP26Z ALL-WHEEL DRIVE VEHICLE TRANSMISSION or 11 00 598 REMOVING AND INSTALLING ENGINE ON FRONT AXLE (N63O1) WITH MANUAL GEARBOX .
Mount engine on assembly stand. See 11 00 MOUNTING ENGINE ON ASSEMBLY STAND (N63O1) .
Remove both cylinder heads. See 11 12 105 REMOVING AND INSTALLING LEFT CYLINDER HEAD (N63O1) and 11 12 106 REMOVING AND INSTALLING RIGHT CYLINDER HEAD (N63O1) .
Remove alternator BELT TENSIONER
Remove OIL PUMP .
Remove UPPER OIL SUMP SECTION
Remove VIBRATION DAMPER
Remove COOLANT PUMP
Remove ALTERNATOR
Remove A/C compressor. See applicable procedure for drivetrain configuration: 64 52 523 REMOVING AND INSTALLING/REPLACING A/C SYSTEM COMPRESSOR (S63) , 64 52 524 REMOVING AND INSTALLING/REPLACING HEATING AND AIR CONDITIONING SYSTEM COMPRESSOR (N63, X DRIVE, DYNAMIC DRIVE) or 64 52 524 REMOVING AND INSTALLING/REPLACING HEATING AND AIR CONDITIONING SYSTEM COMPRESSOR (N63, WITH DYNAMIC DRIVE) .

Release screws along lines (1).

Remove timing case cover (2) towards front.

Clean sealing surfaces with special tool 11 4 470 .

NOTE: Illustrations shows N63 engine.

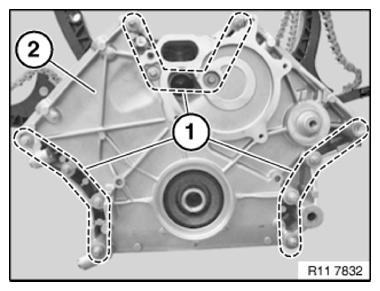

Fig 1: Identifying Timing Case Cover And Bolts

G10041831

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check jump guard for damage.

Release screw (1).

Tightening torque 11 14 1AZ .

Remove jump guard (2).

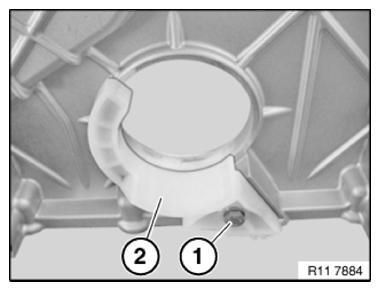

Fig 2: Identifying Jump Guard And Screw

G10041832

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surfaces with special tool 11 4 470 .

Installation note:

Preposition all bolts in timing case cover.

Replace beaded metal gaskets (1, 2 and 3).

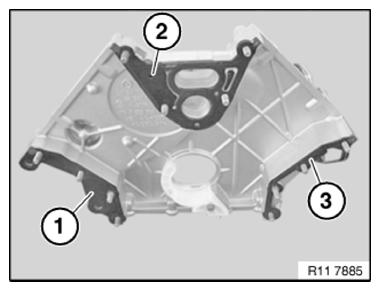

Fig 3: Identifying Beaded Metal Gaskets

G10041833

Courtesy of BMW OF NORTH AMERICA, INC.

Fit timing case cover (2).

Initially tighten all bolts to approx. 5 Nm.

Fully tighten all bolts in alternate sequence.

Tightening torque 11 14 2AZ .

Installation note:

Wait for PU material to emerge at sealing joints.

Do not wash off PU material overhang

Fig 4: Identifying Timing Case Cover And Bolts

G10041834

Courtesy of BMW OF NORTH AMERICA, INC.

Replace RADIAL SHAFT SEAL in gear case cover at bottom.

Assemble engine.
