11 23 010 Removing and installing/replacing vibration damper (N63O1)
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Remove See 17 51 001 REMOVING AND INSTALLING/REPLACING THE LEFT CHARGE AIR COOLER (N63 B40/B44 O 1) or 17 51 001 REMOVE AND INSTALL/REPLACE THE RIGHT CHARGE AIR COOLER (N63 B40/B44 O 1) charge air cooler on left and right
- Remove DRIVE BELT for air conditioning compressor for the air conditioning
- Remove alternator DRIVE BELT
- Remove belt pulley for Air conditioning

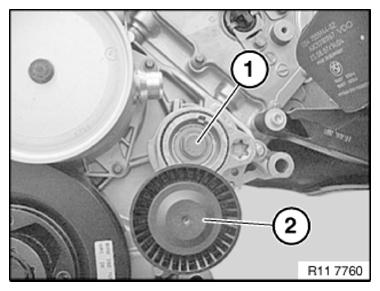

Release screw (1).
Tightening torque 11 28 1AZ .
Remove belt tensioner with idler pulley (2).

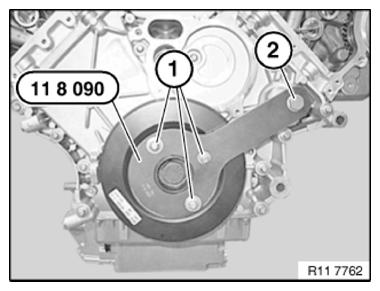

Secure special tool 11 8 090 with three screws (1) to vibration damper.
Secure special tool 11 8 090 with belt tensioner bolt (2) to timing case cover.
Tightening torque 11 28 1AZ .
NOTE:
A 3/4 inch tool is needed to release the central bolt.
Release central bolt on vibration damper.
Secure central bolt with special tool 00 9 140 or 11 3 460 .

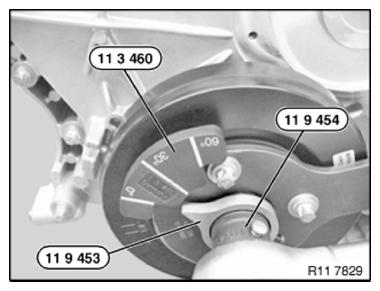

Position special tool 11 3 460 on special tool 11 8 090 .
Adjust special tool 11 9 453 on special tool 11 9 454 using clamping screw to 0° on scale.
Tightening torque 11 23 1AZ See AZD-AZD-AZDMUC1123-S63TU VIBRATION DAMPER or AZD-AZD-AZDMUC1123-N63O1 VIBRATION DAMPER .
Assemble engine.
