41 62 014 Adjusting tailgate

IMPORTANT: Do not damage adjoining body components.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

Read contents of BODY, GENERAL .

Observe GAP DIMENSIONS .

The tailgate must be provided with all attachment parts for correct adjustment.

When the tailgate is closed, the lock striker must not touch or scrape against the tailgate lock. Look out for scratch marks.

Slacken lock striker, remove if necessary.

Carry over schematic diagram to the relevant vehicle type.

Adjustment points for adjusting tailgate to fit.

Fig 1: Locating Tailgate Adjustment Points

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Slacken screws (1)

Tightening torque 41 62 1AZ .

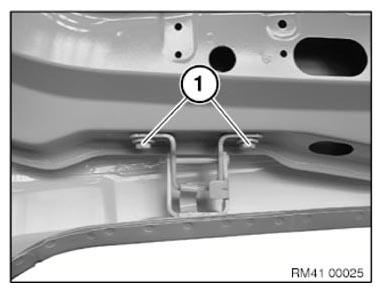

Fig 2: Identifying Tailgate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

If adjustment range is not enough, also slacken nuts (1). Only accessible from passenger compartment.

Tightening torque 41 61 2AZ .

If necessary, adjust TAILGATE LOCK .

Adjust STOP PADS .

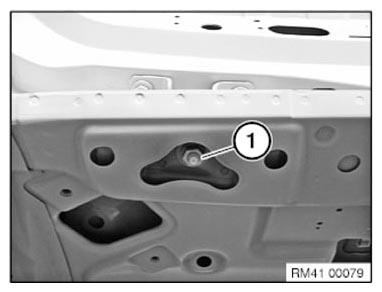

Fig 3: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note:

Tighten all screws and nuts to specified torque.
Touch up unpainted surfaces in the appropriate color.
