41 12 653 Replacing Luggage Compartment Floor, Left Section (Rear Side Panel And Tail Panel Removed)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

STRIP DOWN VEHICLE

Following new body parts are required (see BMW ELECTRONIC PARTS CATALOGUE ):

(1) Luggage compartment floor, left section

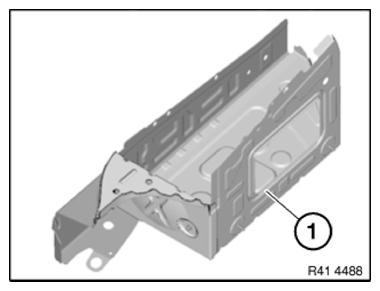

Fig 1: Identifying Luggage Compartment Floor
Courtesy of BMW OF NORTH AMERICA, INC.

Removal

Graphic shows side wall partially removed for purposes of clarity.

Mark severance cut (1) at component edge and cut.

Open welded connections in area (2).

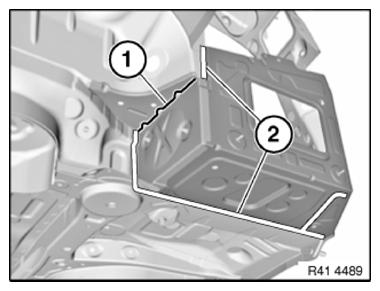

Fig 2: Identifying Mark Severance Cut And Welded Connections Area

G09878600

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

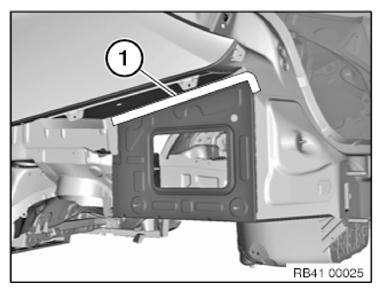

Fig 3: Identifying Welded Connections Area

G09878601

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Remove luggage compartment floor (2).

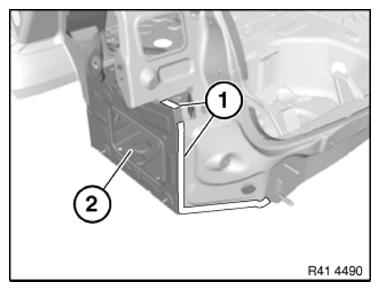

Fig 4: Identifying Welded Connections Areas And Luggage Compartment Floor

G09878602

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part

Mark severance cut according to vehicle + 10 mm additional material and cut (1).

Open welded connections in area (2).

Remove metal section (3).

NOTE: Weld new part in area (4) overlapping.

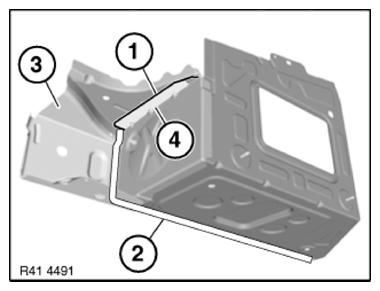

Fig 5: Identifying Material Cut, Metal Section And Welded Connections Area

G09878603

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install new part and weld.
